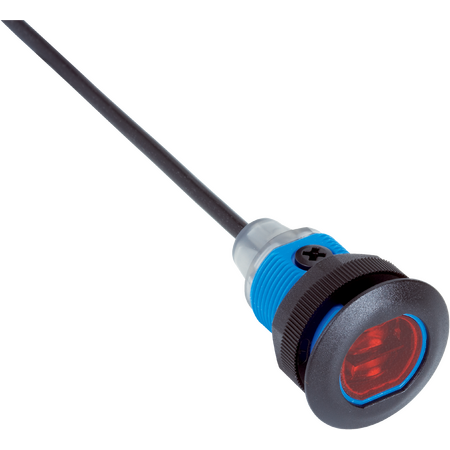

GRTB18S-P1117 | Photoelectric sensors
The SICK GRTB18S-P1117 is a photoelectric proximity sensor featuring background suppression, visible red light, and robust IP67 protection, ideal for precise object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTB18S-P1117 | Photoelectric sensors
Brand: SICK
SKU: 1076098
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, M18 photoelectric sensor, Red light proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 150 mm (max 300 mm)
- Light source: PinPoint LED, 650 nm wavelength
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m, PVC
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38.1mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 150 mm, max 300 mm
- Cylindrical housing design with M18 x 1 thread diameter
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection
- High switching frequency of 1,000 Hz and response time under 500 µs
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Cable connection with 4-wire, 2 m PVC cable
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GRTB18S-P1117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
