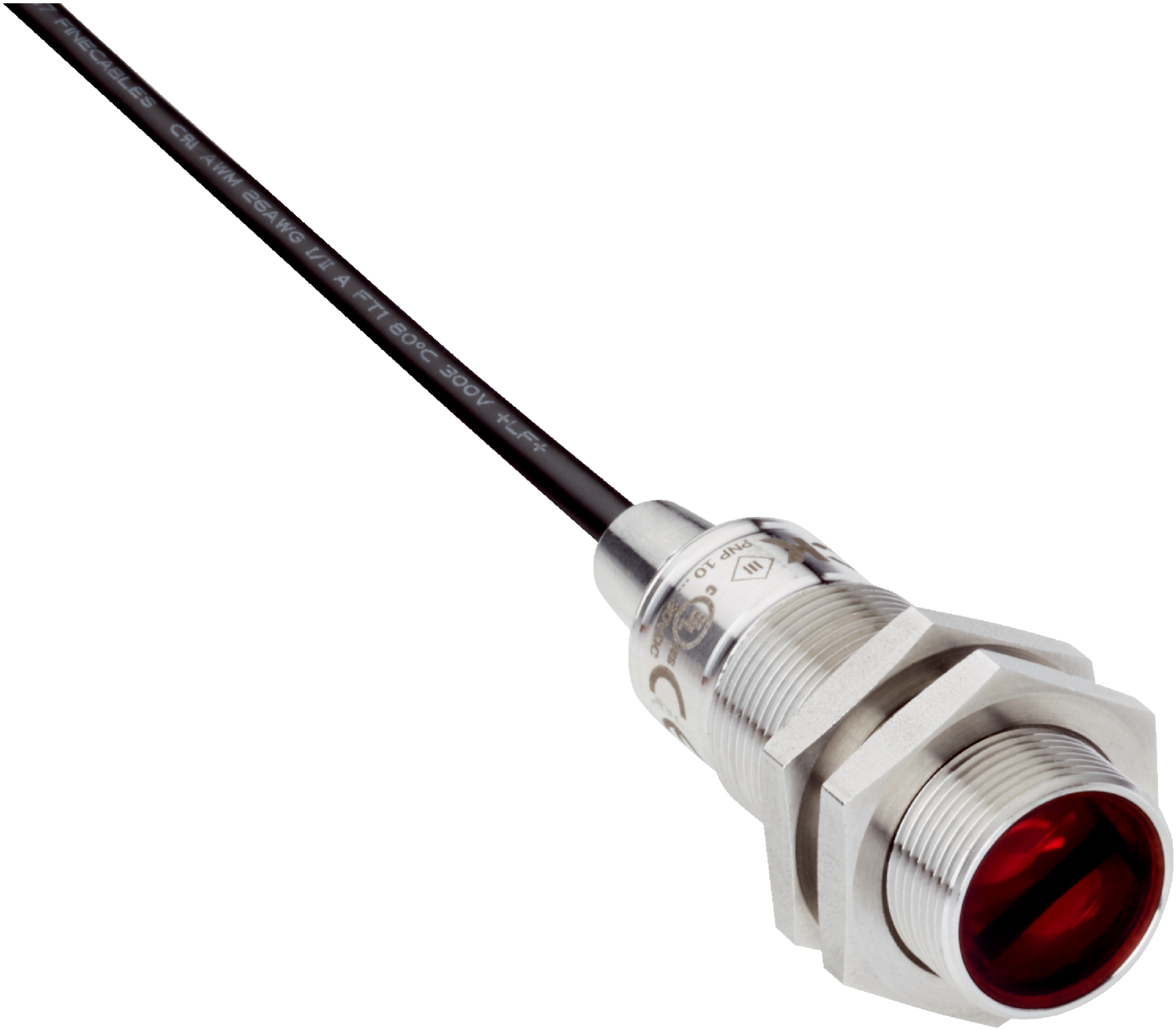

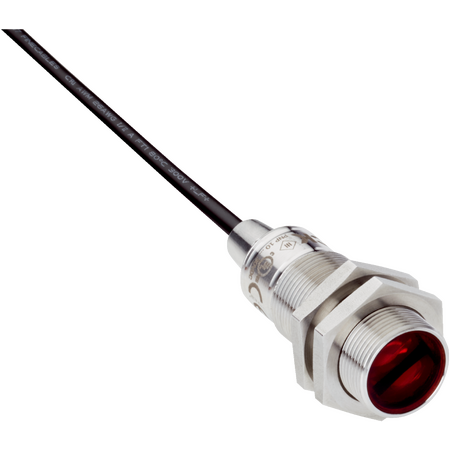

GRTB18S-P1131V | Photoelectric sensors
The SICK GRTB18S-P1131V is a durable photoelectric proximity sensor featuring background suppression, stainless steel housing, and high ingress protection, ideal for industrial and hygienic applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTB18S-P1131V | Photoelectric sensors
Brand: SICK
SKU: 1085747
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Cable: 4-wire, 2 m PVC cable, diameter 4.8 mm
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Thread diameter: M18 x 1
- Sensing range: 15 mm to 100 mm
- Light source wavelength: 650 nm
- Dimensions (H x L x W): 18mm x 56mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Axial optical axis with sensing range from 15 mm to 100 mm
- Robust metal housing made of stainless steel V4A (1.4404, 316L)
- High protection rating: IP67, IP68, and IP69K
- LED indicators for power and object detection status
- Fast response time under 500 µs and switching frequency up to 1,000 Hz
- Cable connection with 2 m PVC cable included
- Suitable for hygienic and washdown environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GRTB18S-P1131V Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
