GRTE18-N1162V | Photoelectric sensors

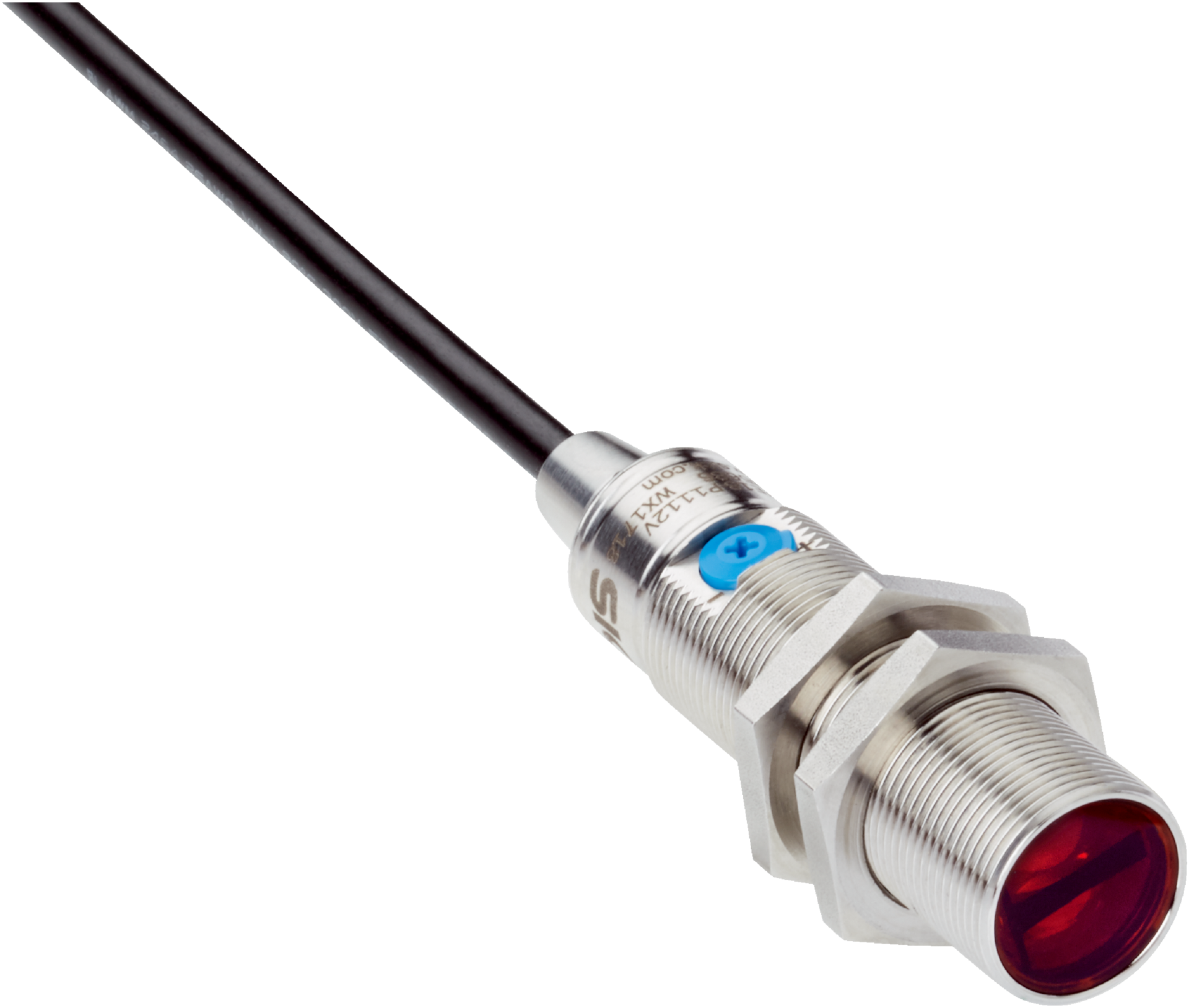

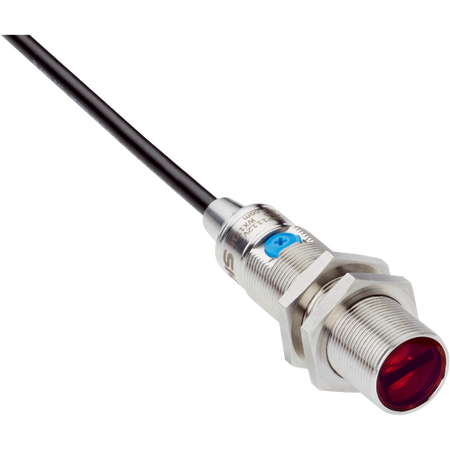

The SICK GRTE18-N1162V is a robust photoelectric proximity sensor designed for precise object detection in industrial and hygienic environments, featuring a stainless steel housing and high ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTE18-N1162V | Photoelectric sensors
Brand: SICK
SKU: 1085935
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, Photo sensor, Industrial sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN complementary
- Switching mode: Light/dark switching
- Response time: less than 1000 µs
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: PMMA plastic
- Tightening torque max: 90 Nm
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25°C to +55°C
- Storage temperature: -30°C to +75°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with 650 nm wavelength
- Sensing range from 10 mm to 800 mm, max 1000 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object presence
- Stainless steel V4A housing for durability and hygienic applications
- High protection rating: IP67, IP68, IP69K
- Fastening nuts included for easy installation
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and optimal sensor performance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GRTE18-N1162V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
