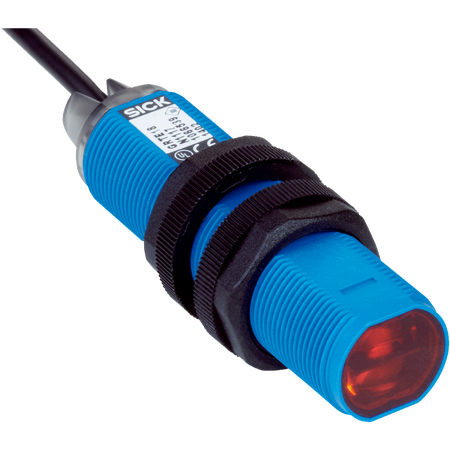

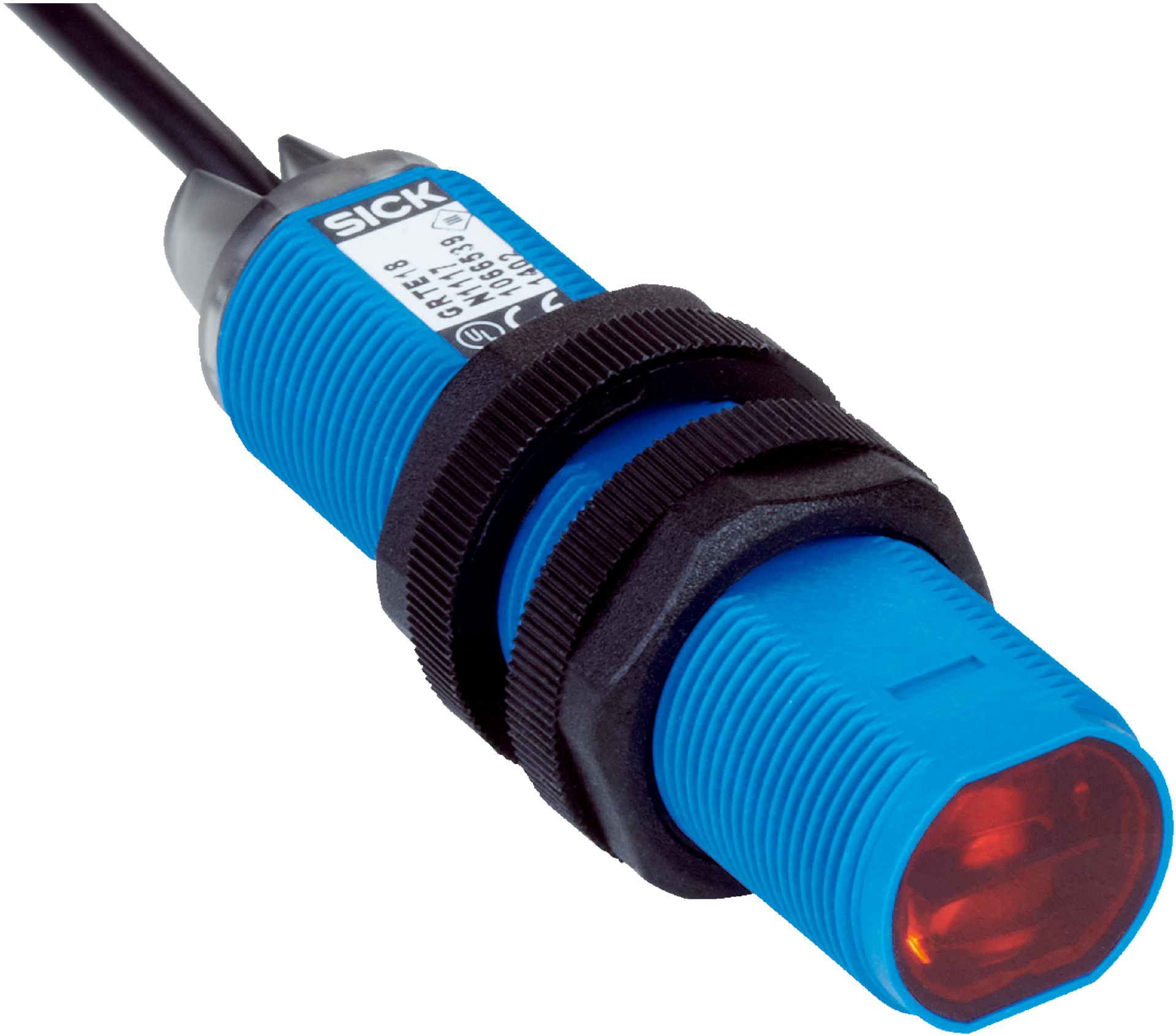

GRTE18-P1137 | Photoelectric sensors
The SICK GRTE18-P1137 is a robust photoelectric proximity sensor designed for precise object detection in industrial automation, featuring a cylindrical M18 housing and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTE18-P1137 | Photoelectric sensors
Brand: SICK
SKU: 1094781
Alternatively Known As: Photoelectric proximity sensor, M18 photoelectric sensor, Infrared proximity sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary output function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Cable: 4-wire, 2 m, PVC material
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- EMC compliance: EN 60947-5-2
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical housing design with M18 x 1 thread diameter
- Axial optical axis with sensing range from 3 mm to 250 mm
- Infrared LED light source with 850 nm wavelength
- Potentiometer adjustment for sensitivity
- LED indicators: green for power on, yellow for object detection
- High switching frequency of 500 Hz and response time under 1 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Cable connection with 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTE18-P1137 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
