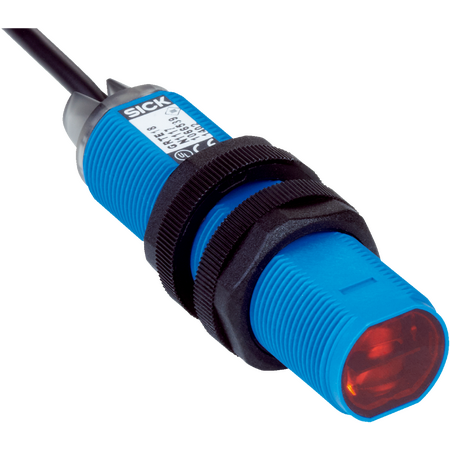

GRTE18-P1237 | Photoelectric sensors
The SICK GRTE18-P1237 is a reliable photoelectric proximity sensor featuring an energetic functional principle, adjustable sensing range, and robust IP67 rated housing, ideal for industrial automation and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTE18-P1237 | Photoelectric sensors
Brand: SICK
SKU: 1121486
Alternatively Known As: Photoelectric proximity sensor, Infrared proximity sensor, M18 photoelectric sensor, SICK photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Cable: 4-wire, 5 m PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Cylindrical housing design with M18 x 1 thread diameter
- Axial optical axis with infrared LED light source
- Adjustable sensing range from 3 mm to 250 mm
- LED indicators for power and object presence status
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -25°C to +55°C
- Cable connection with 4-wire, 5 m PVC cable
- Fastening nuts included for easy installation
- High switching frequency of 500 Hz and response time under 1 ms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring presence detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTE18-P1237 Photoelectric Proximity Sensor is available now for immediate purchase. Ideal for industrial automation and object detection applications.
