GRTE18-P2462V | Photoelectric sensors

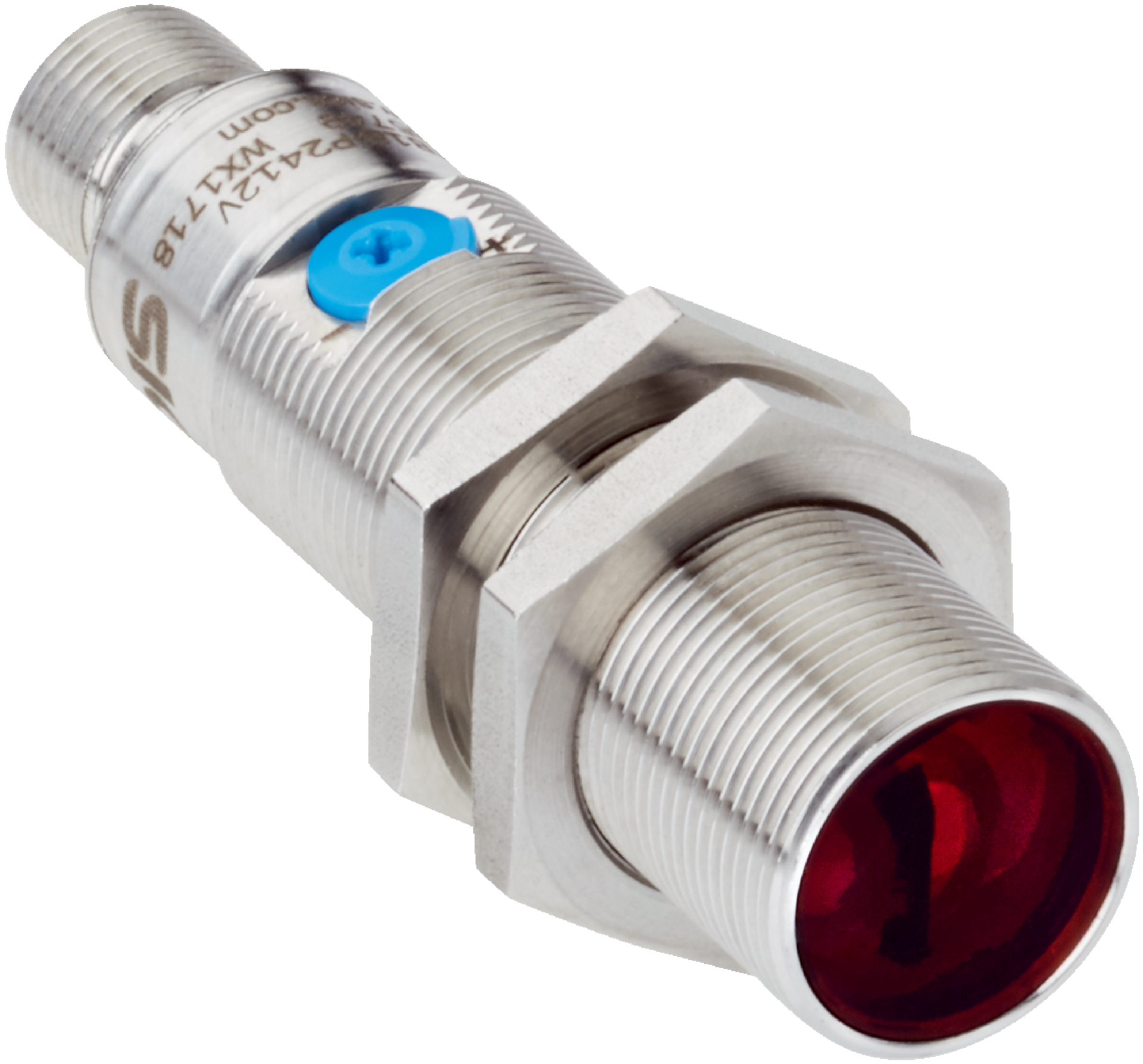

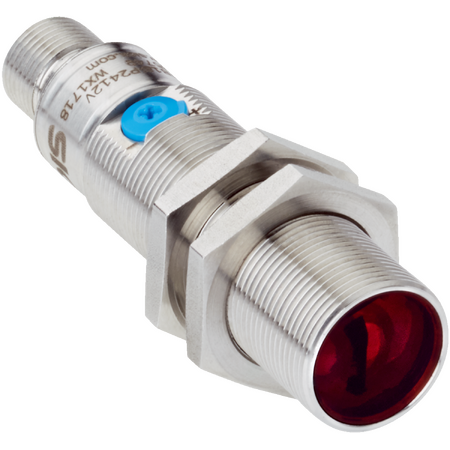

The SICK GRTE18-P2462V is a robust photoelectric proximity sensor designed for precise object detection in industrial and hygienic environments, featuring stainless steel housing and high ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTE18-P2462V | Photoelectric sensors
Brand: SICK
SKU: 1085704
Alternatively Known As: Photoelectric sensor, Proximity sensor M18, Red light sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1000 µs
- Switching frequency: 500 Hz
- Connection: Male M12, 4-pin connector
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- MTTFD: 1,408 years
- Mission time: 20 years
- Dimensions (H x L x W): 18mm x 73.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with 650 nm wavelength
- Sensing range from 10 mm to 800 mm, max 1000 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object presence
- Stainless steel V4A housing for durability and hygienic applications
- High protection rating: IP67, IP68, IP69K
- Fast switching frequency of 500 Hz and response time under 1000 µs
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GRTE18-P2462V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
