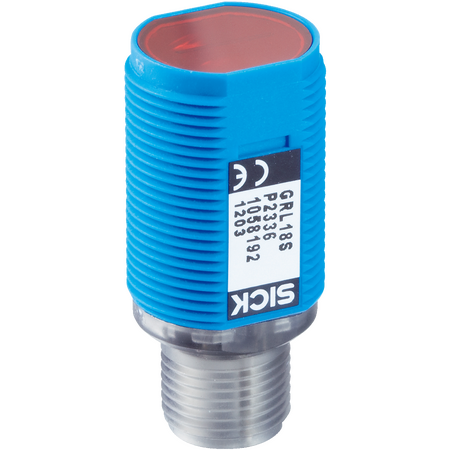

GRTE18S-N1147 | Photoelectric sensors
The SICK GRTE18S-N1147 is a reliable photoelectric proximity sensor featuring a visible red PinPoint LED, robust M18 cylindrical housing, and IP67 protection, ideal for industrial automation and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTE18S-N1147 | Photoelectric sensors
Brand: SICK
SKU: 1062024
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, M18 photoelectric sensor, SICK proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 10 mm to 400 mm (max 550 mm)
- Light source: PinPoint LED, 650 nm wavelength
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Connection type: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38.1mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 10 mm to 400 mm, max 550 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Robust cylindrical M18 x 1 housing design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Cable connection with 4-wire, 2 m PVC cable
- Complementary NPN switching output with light/dark switching mode
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTE18S-N1147 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
