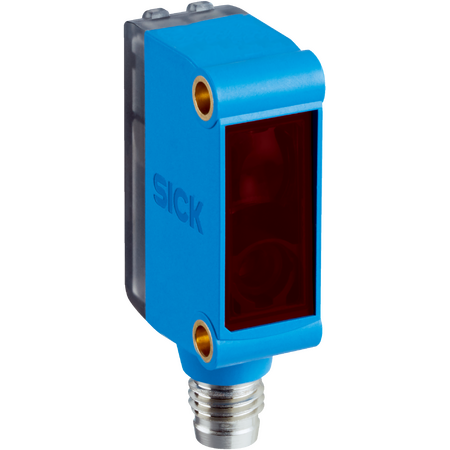

GS6-D4312S71 | Photoelectric sensors
The SICK GS6-D4312S71 is a through-beam photoelectric sensor designed for precise object detection with a sensing range up to 8 meters, featuring a robust IP67 rated housing and fast response time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GS6-D4312S71 | Photoelectric sensors
Brand: SICK
SKU: 1112773
Alternatively Known As: Photoelectric sensor GS6-D4312S71, Through-beam sensor SICK, Industrial photo sensor GS6-D4312S71
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 10 m
- Sensing range: 0 m to 8 m
- Light source: PinPoint LED
- Type of light: Visible red light
- Light spot size at 10 m: Ø 1,550 mm
- Wavelength: 650 nm
- Supply voltage UB: 10 V DC to 30 V DC
- Ripple: ± 10%
- Current consumption: 30 mA
- Protection class: III
- Output current Imax: ≤ 100 mA
- Response time: < 350 µs
- Switching frequency: 1,700 Hz
- Circuit protection: A, B, D
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with a sensing range up to 8 meters
- Visible red light PinPoint LED with 650 nm wavelength
- Wide optical angle of dispersion for sender only
- Fast response time under 350 microseconds
- High switching frequency of 1700 Hz
- IP67 rated enclosure for dust and water protection
- Compact plastic housing made of ABS/PC with PMMA front screen
- Includes fastening screws for easy mounting
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GS6-D4312S71 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
