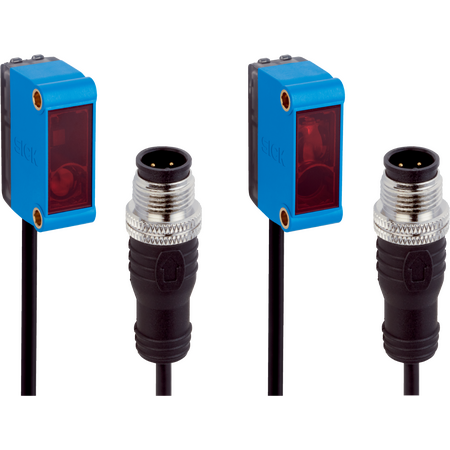

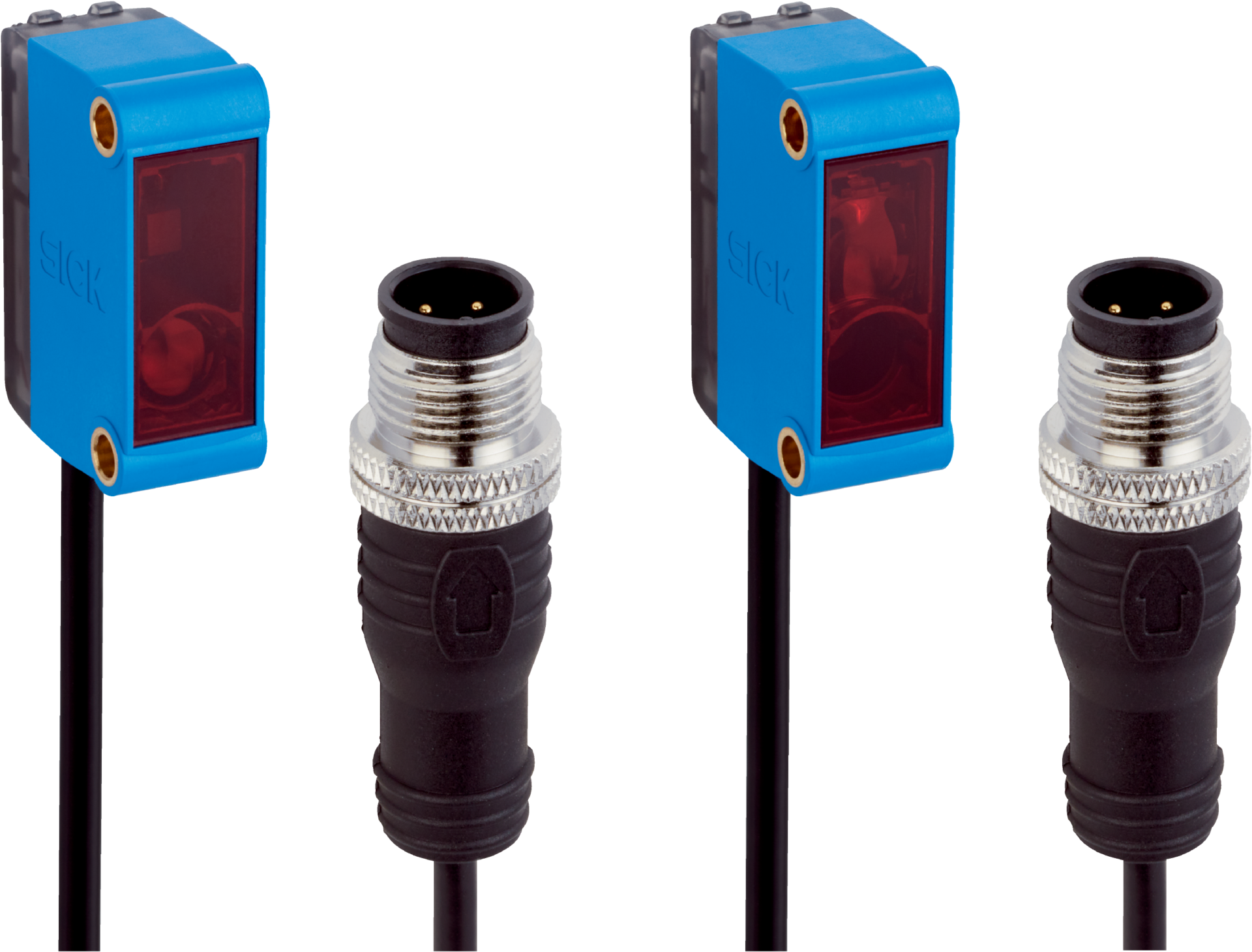

GSE6-P0121S48 | Photoelectric sensors
The SICK GSE6-P0121S48 is a through-beam photoelectric sensor featuring an infrared LED light source, suitable for industrial automation with a sensing range up to 14.5 meters and robust IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GSE6-P0121S48 | Photoelectric sensors
Brand: SICK
SKU: 1070054
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Infrared sensor, Industrial sensor, SICK photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 14.5 m
- Light source: Infrared LED, wavelength 850 nm
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 14.5 meters
- Light/dark switching mode selectable via selector
- High switching frequency of 1000 Hz
- IP67 rated housing for dust and water protection
- Compact plastic housing made of ABS/PC
- Cable with M12 male connector, 4-pin, 500 mm length
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE6-P0121S48 photoelectric sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
