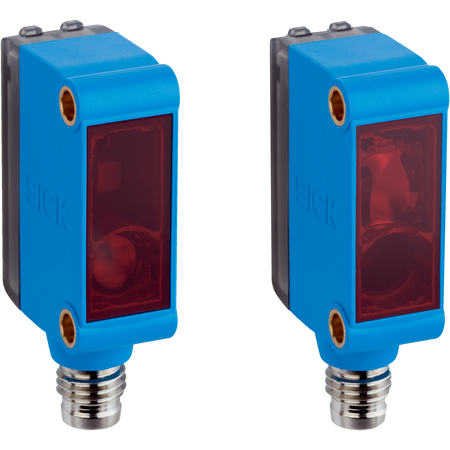

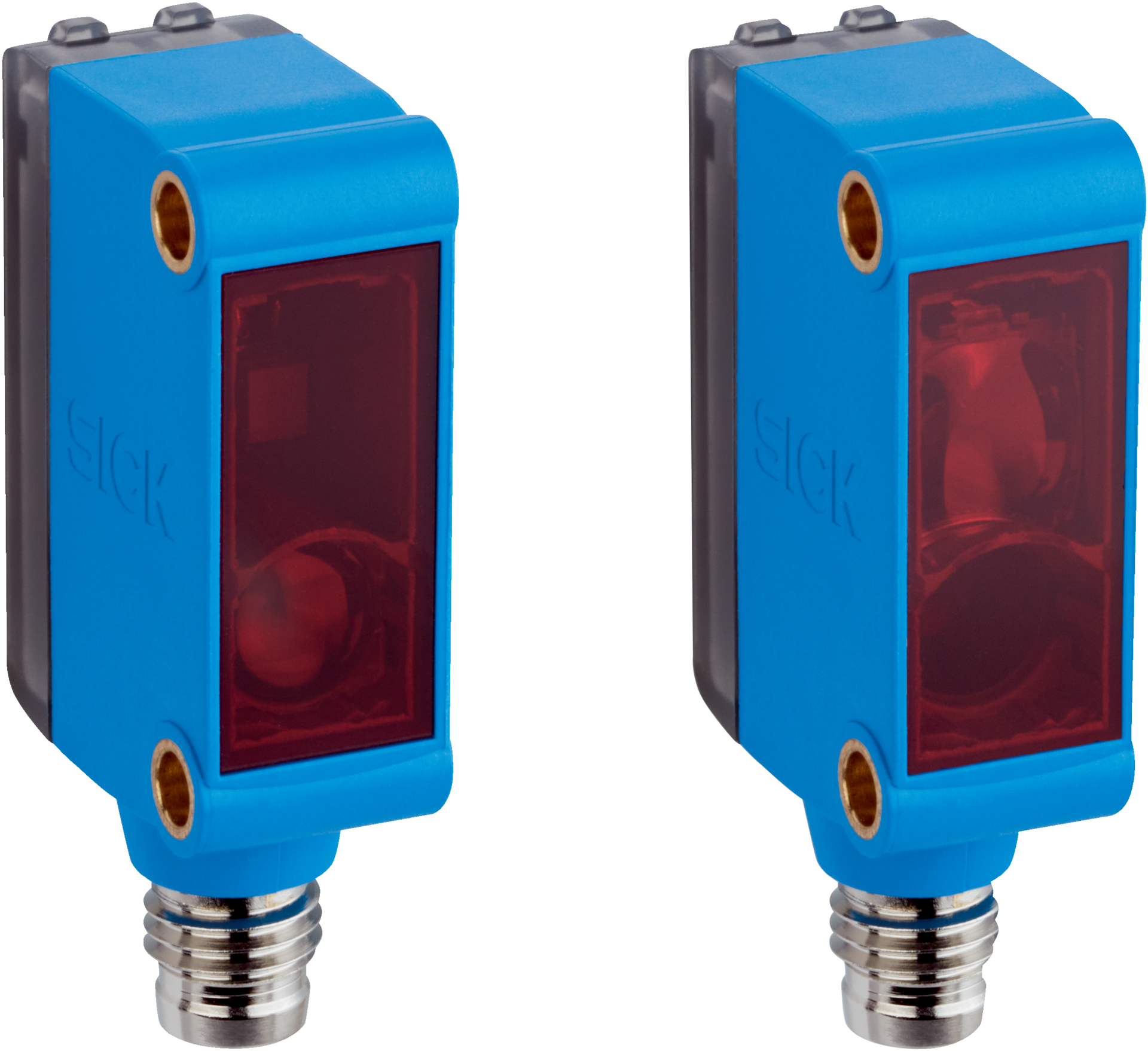

GSE6-P4121S31 | Photoelectric sensors
The SICK GSE6-P4121S31 is a through-beam photoelectric sensor featuring an infrared LED light source, designed for reliable object detection in industrial automation with a sensing range up to 14.5 meters and robust IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GSE6-P4121S31 | Photoelectric sensors
Brand: SICK
SKU: 1063527
Alternatively Known As: Through-beam photoelectric sensor, Infrared photoelectric sensor, Industrial object sensor, SICK photoelectric sensor
Technical Specifications
- Functional principle: Through-beam photoelectric sensor
- Sensing range max.: 0 m to 14.5 m
- Light source: Infrared LED, wavelength 860 nm
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC with PMMA front screen
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensor with infrared LED light source
- Sensing range up to 14.5 meters
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz and fast response time under 500 µs
- Robust plastic housing with IP67 enclosure rating for harsh environments
- Operating temperature range from -25°C to +55°C
- Male connector M8, 4-pin for easy connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GSE6-P4121S31 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
