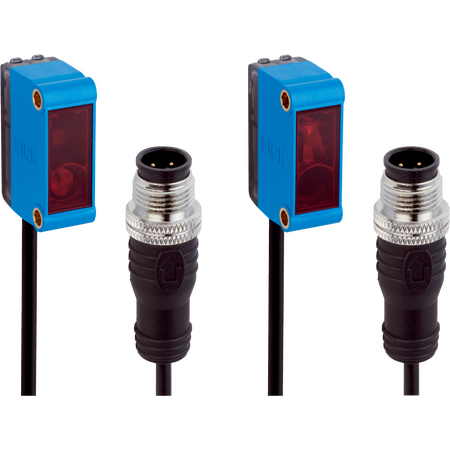

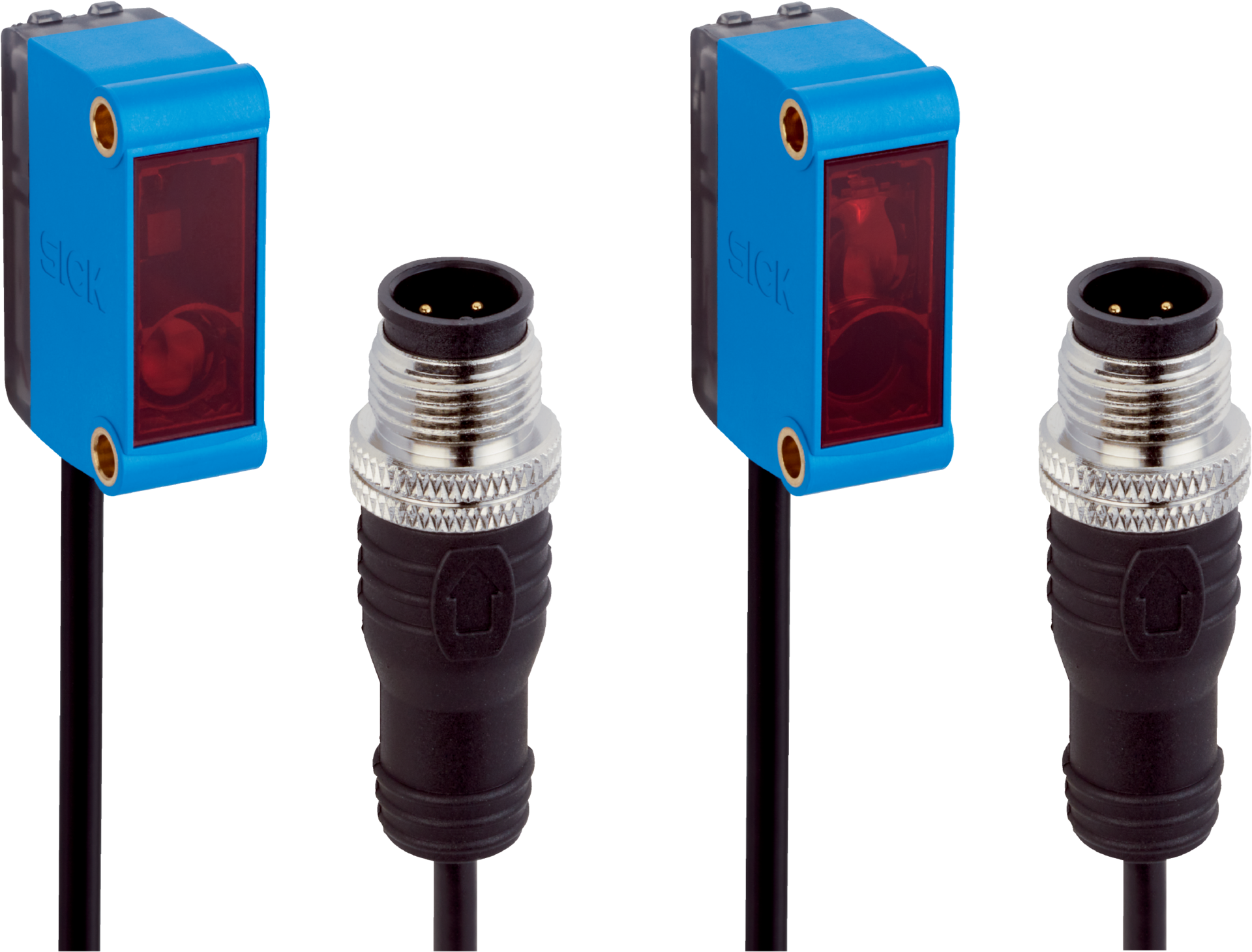

GSE6-P7111 | Photoelectric sensors
The SICK GSE6-P7111 is a through-beam photoelectric sensor with a sensing range up to 15 meters, featuring a visible red light source and robust IP67 rated housing for reliable industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GSE6-P7111 | Photoelectric sensors
Brand: SICK
SKU: 1054830
Alternatively Known As: Photoelectric sensor, Through-beam sensor, Optical sensor, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Switching frequency: 1000 Hz
- Response time: less than 500 µs
- Output type: PNP, light/dark switching selectable
- Signal voltage NPN HIGH/LOW: Approx. VS / ≤ 3 V
- Output current max: ≤ 100 mA
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam photoelectric sensing principle
- Sensing range up to 15 meters
- Visible red light with 650 nm wavelength
- IP67 rated enclosure for dust and water protection
- Fast response time under 500 microseconds
- Selectable light/dark switching mode
- Cable with M12 male connector, 4-pin
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GSE6-P7111 Through-beam Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
