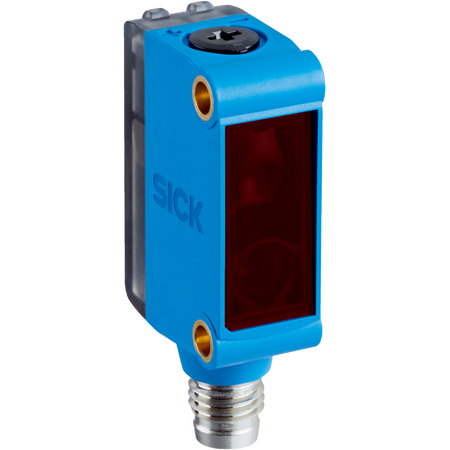

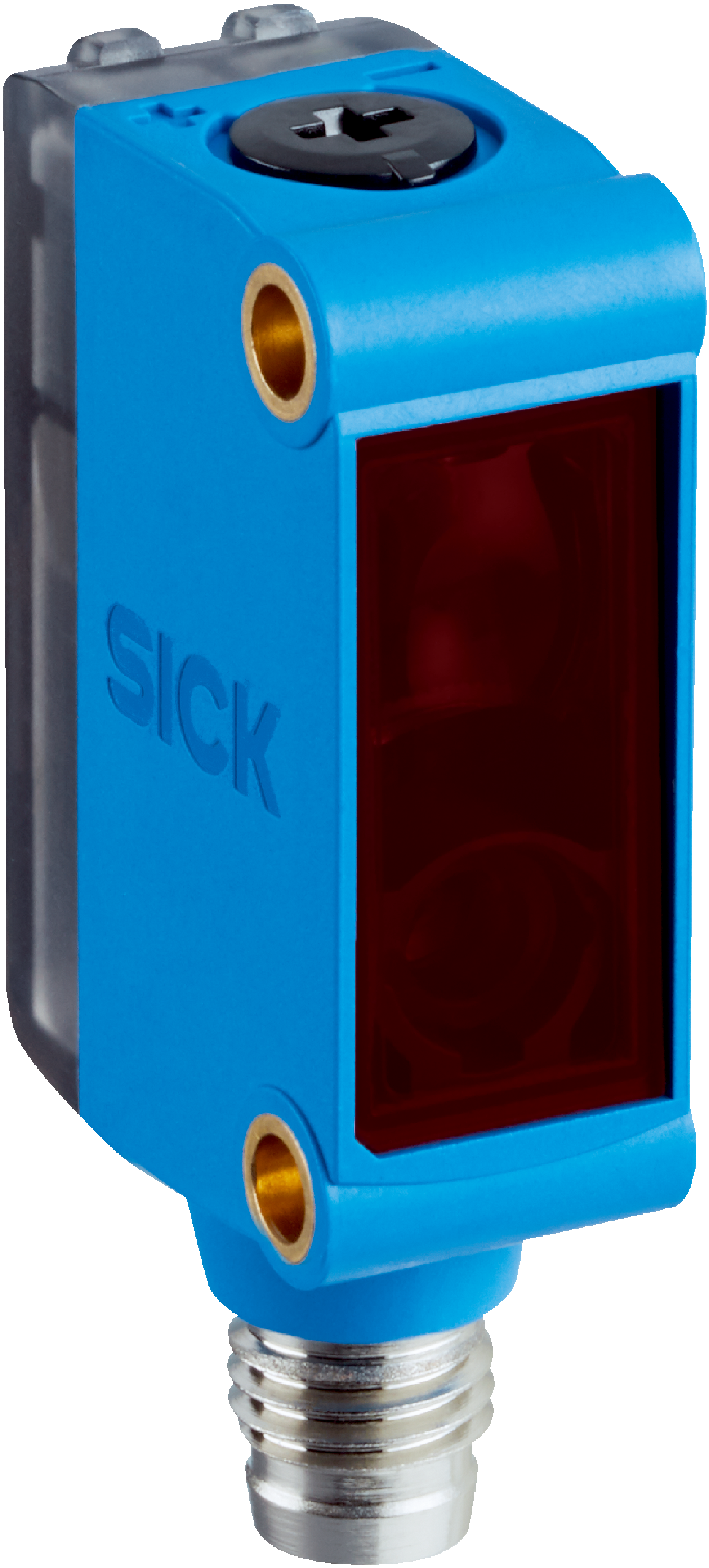

GTB6-N4211 | Photoelectric sensors
The SICK GTB6-N4211 photoelectric sensor offers reliable background suppression detection with a compact design, suitable for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTB6-N4211 | Photoelectric sensors
Brand: SICK
SKU: 1052439
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, NPN photoelectric sensor, Visible red light sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 35 mm to 140 mm (max 5 mm to 250 mm)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Mechanical spindle, 5 turns
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: NPN digital output, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic ABS/PC with PMMA front screen
- Connection: Male connector M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 35 mm to 140 mm, max up to 250 mm
- Visible red light PinPoint LED with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- NPN digital output with selectable light/dark switching
- High switching frequency of 1000 Hz and fast response time under 625 µs
- Robust plastic ABS/PC housing with IP67 rating for dust and water protection
- Compact dimensions: 12 mm x 31.5 mm x 21 mm
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB6-N4211 photoelectric sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
