GTB6-P4212 | Photoelectric sensors

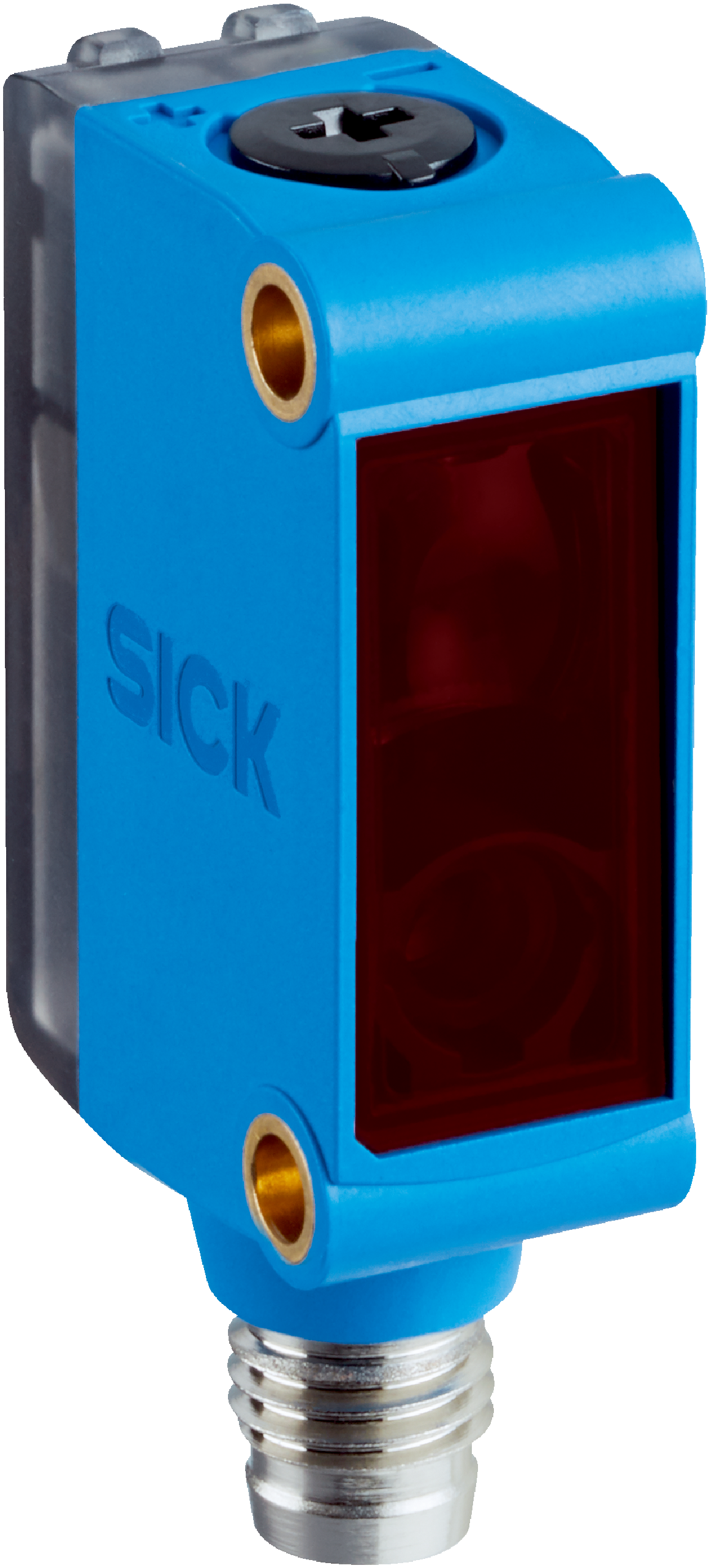

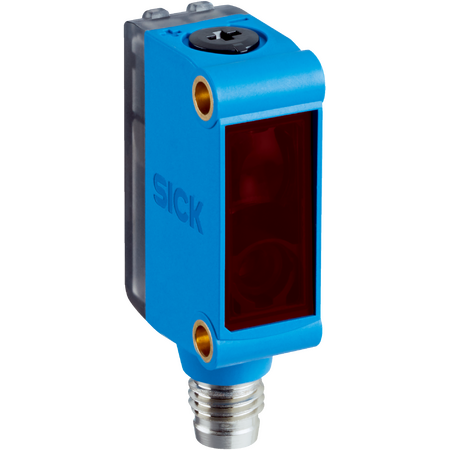

The SICK GTB6-P4212 is a compact photoelectric proximity sensor featuring background suppression, suitable for precise object detection in industrial automation with robust IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTB6-P4212 | Photoelectric sensors
Brand: SICK
SKU: 1052442
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, PNP photoelectric sensor, Visible red light sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP digital output with light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1000 Hz
- Mechanical adjustment: 5-turn spindle
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Male M8, 4-pin connector
- Weight: 20 g
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 5 mm to 250 mm
- PinPoint LED visible red light with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Stainless steel mounting bracket included
- IP67 rated enclosure for dust and water protection
- Fast response time under 625 µs and switching frequency up to 1000 Hz
- Light/dark switching mode selectable via selector
- Compact plastic housing with ABS/PC and PMMA front screen
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB6-P4212 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
