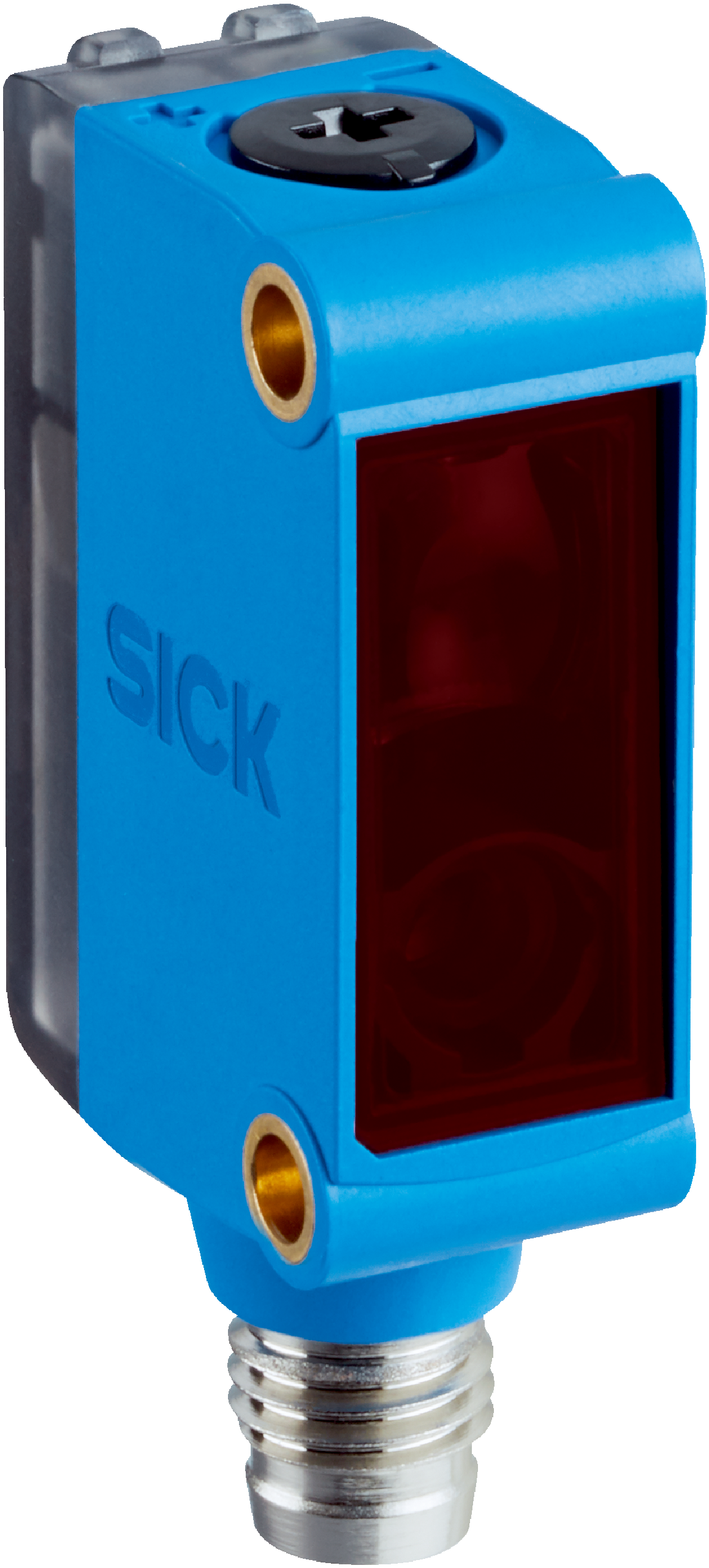

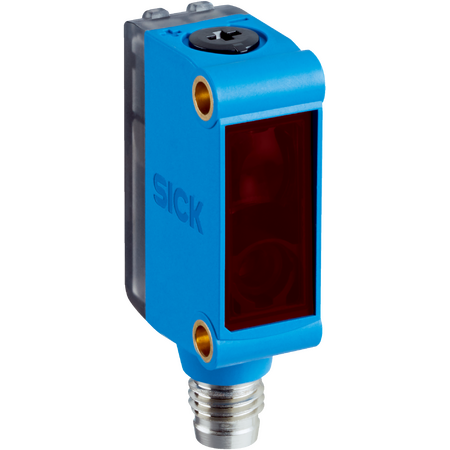

GTB6L-F4211 | Photoelectric sensors
The SICK GTB6L-F4211 is a high-performance photoelectric sensor featuring background suppression, adjustable sensing range, and robust IP67 rated housing, ideal for industrial automation and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTB6L-F4211 | Photoelectric sensors
Brand: SICK
SKU: 1109660
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Laser photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 400 mm adjustable
- Recommended sensing range: 30 mm to 180 mm
- Light source: Laser, visible red light, 680 nm wavelength
- Light spot size: Ø 0.4 mm at 150 mm distance
- Maximum pulse power: ≤ 11.9 mW
- Switching mode: Light/dark switching with PNP outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Connector: Male M8, 4-pin
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 400 mm
- Visible red laser light source with 680 nm wavelength
- Point-shaped light spot with 0.4 mm diameter at 150 mm distance
- High switching frequency up to 1000 Hz
- IP67 rated enclosure for dust and water protection
- LED indicators for power and object detection status
- Robust plastic ABS housing with M8 4-pin male connector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient laser light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB6L-F4211 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
