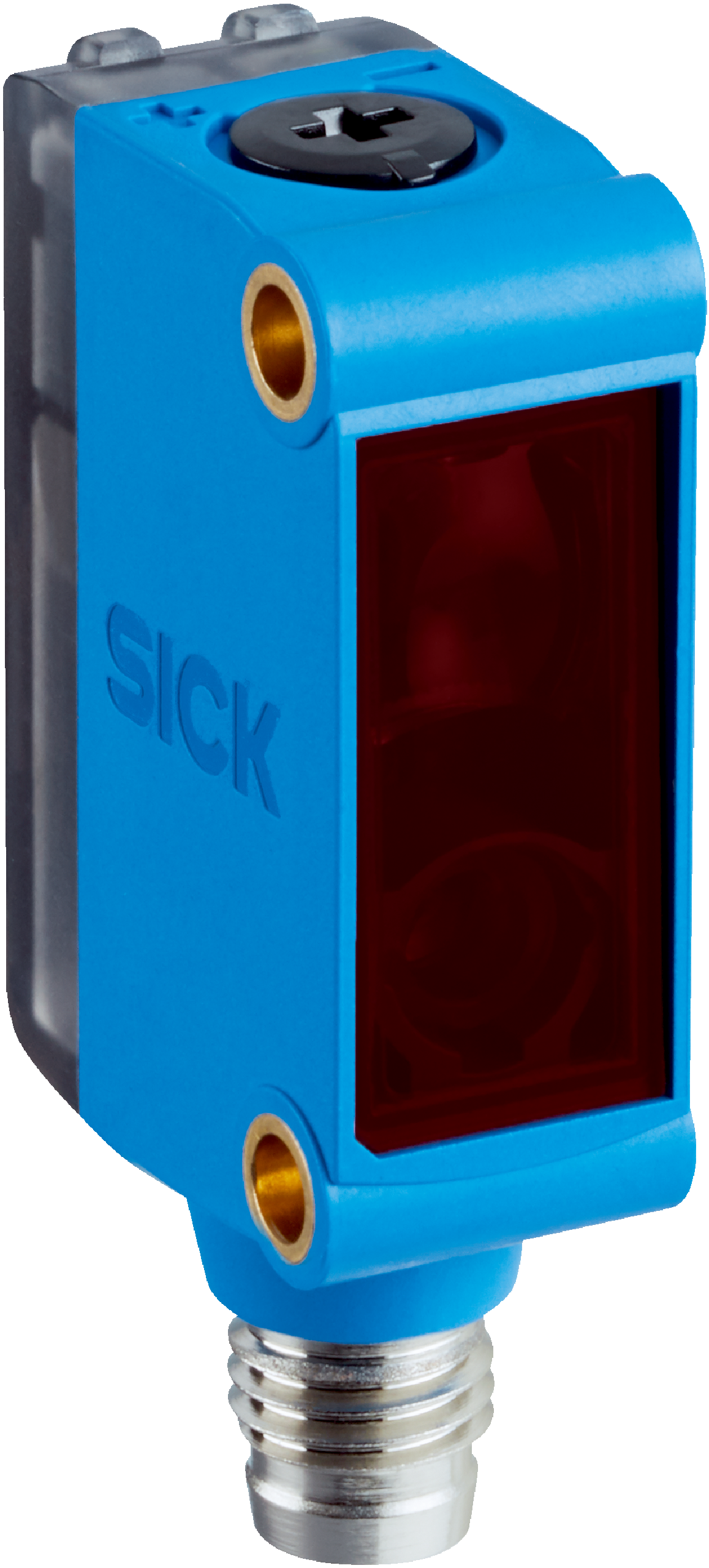

GTB6L-P3211 Photoelectric sensors
The SICK GTB6L-P3211 photoelectric sensor offers precise background suppression detection with adjustable sensing range up to 400 mm
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

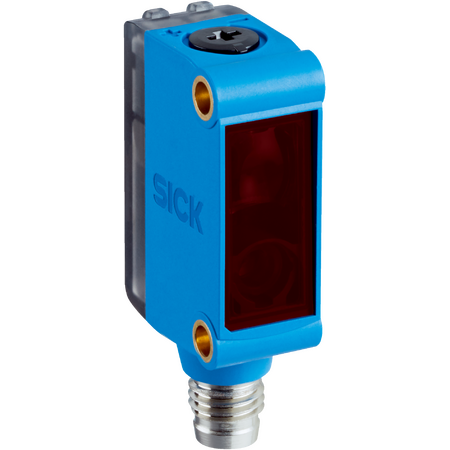

Product Name/Title: GTB6L-P3211 | Photoelectric sensors
Brand: SICK
SKU: 1117820
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Laser sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 400 mm adjustable
- Recommended sensing range: 30 mm to 180 mm
- Light source: Laser, visible red light, wavelength 680 nm
- Light spot size: Ø 0.4 mm at 150 mm distance
- Laser class: 1
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Output type: 1 PNP digital output, light/dark switching
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Connection: M8, 3-pin connector
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 400 mm
- Visible red laser light source with point-shaped light spot
- High accuracy with smallest detectable object size of 0.4 mm
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 rating for harsh environments
- Short response time of ≤ 625 µs and switching frequency up to 1000 Hz
- Protection against reverse polarity, overcurrent, and short-circuit
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Presence detection in manufacturing processes
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB6L-P3211 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
