GTE6-F2431V | Photoelectric sensors
The SICK GTE6-F2431V is a robust photoelectric proximity sensor designed for precise object detection in industrial and hygienic environments, featuring stainless steel housing and high protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

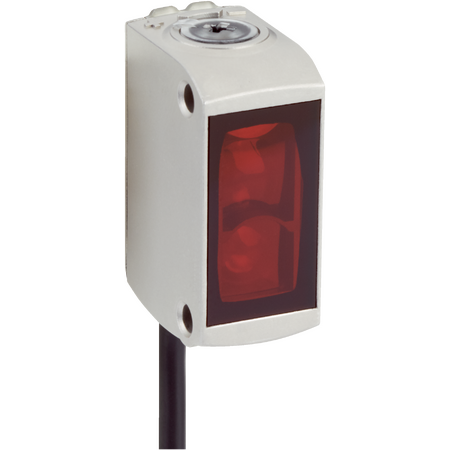

Product Name/Title: GTE6-F2431V | Photoelectric sensors
Brand: SICK
SKU: 1086173
Alternatively Known As: Photoelectric sensor, Proximity sensor, PNP photoelectric sensor, Red light sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP, complementary switching output
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: VS- (≤ 3 V) / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- MTTFD: 1,749 years
- Mission time: 20 years
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Cable length: 2 m
- Conductor size: 0.14 mm²
- Dimensions (H x L x W): 44mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 40 mm to 760 mm, max 900 mm
- PinPoint LED visible red light with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Housing made of stainless steel V4A (1.4404, 316L) for durability
- IP67 and IP69K rated for protection against dust and water
- Fast response time under 1.25 ms and switching frequency of 500 Hz
- Complementary PNP switching output with light/dark switching mode
- Cable connection with 4-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper sensor function and compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High protection rating extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE6-F2431V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
