Trade Discount 20%

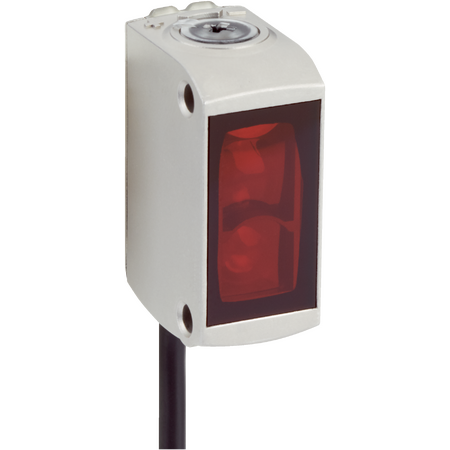

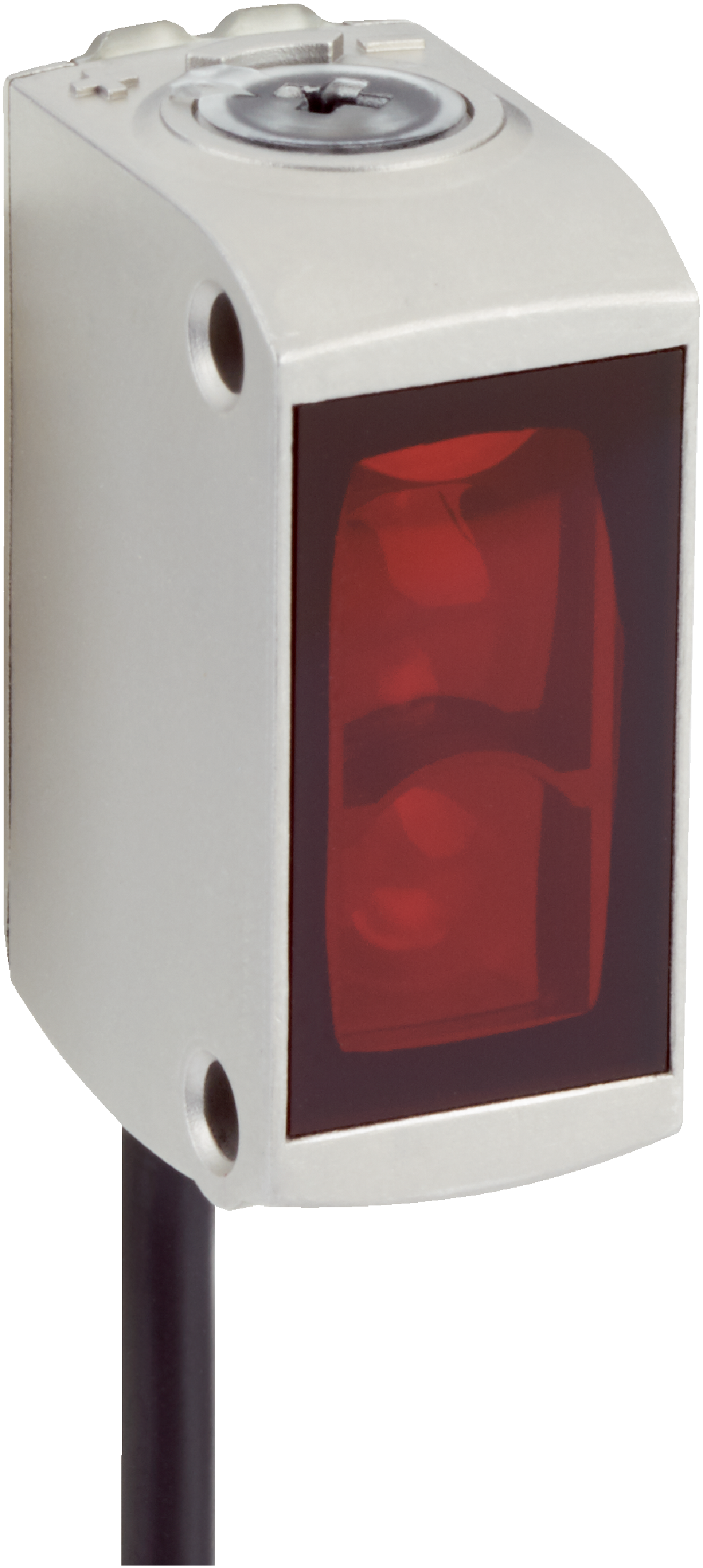

GTE6-F7411V | Photoelectric sensors
The SICK GTE6-F7411V is a robust photoelectric proximity sensor featuring a stainless steel housing, suitable for hygienic and washdown zones with a sensing range up to 250 mm and fast response time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTE6-F7411V | Photoelectric sensors
Brand: SICK
SKU: 1084097
Alternatively Known As: Photoelectric proximity sensor, PNP photoelectric sensor, Stainless steel photo sensor, Washdown photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP, complementary switching output
- Switching mode: Light/dark switching
- Signal voltage PNP HIGH/LOW: VS- (≤ 3 V) / approx. 0 V
- Output current max: ≤ 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Enclosure rating: IP67, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 44mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 15 mm to 250 mm, max 10 mm to 300 mm
- PinPoint LED visible red light with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Stainless steel V4A (1.4404, 316L) metal housing for durability
- IP67 and IP69K rated for protection against dust and high-pressure washdown
- Cable with M12 male connector, 4-pin, 300 mm length
- Fast response time under 1.25 ms and switching frequency of 500 Hz
- Complementary PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring stainless steel housing
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- IP67 and IP69K ratings ensure long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GTE6-F7411V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic applications.
