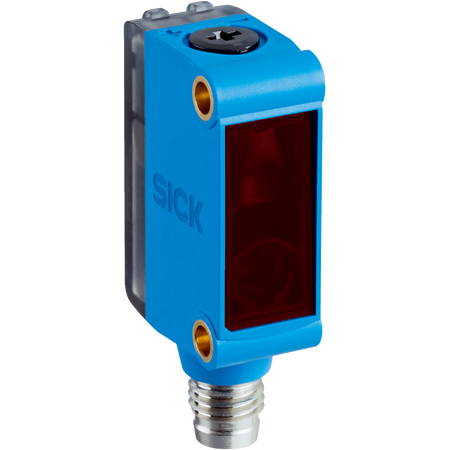

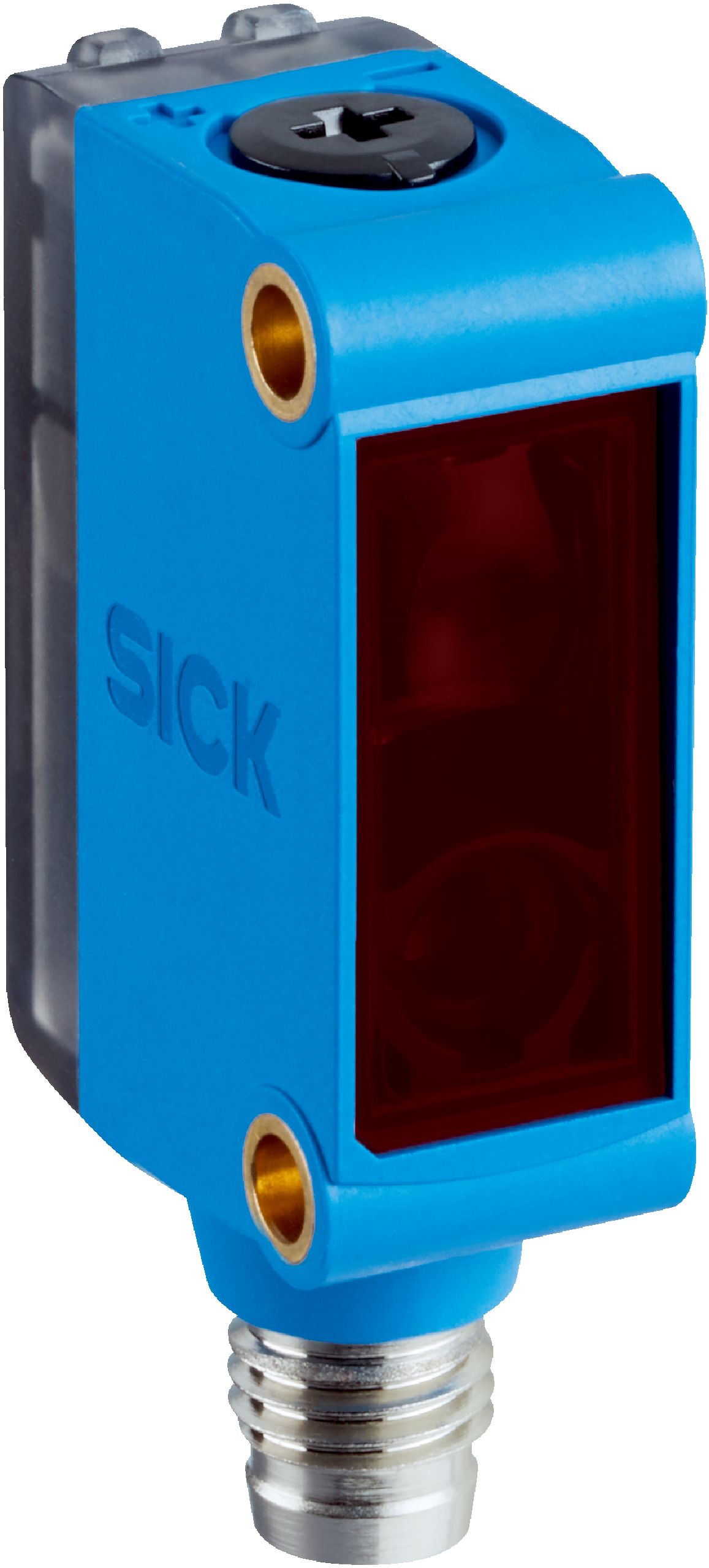

GTE6-N4232 | Photoelectric sensors
The SICK GTE6-N4232 photoelectric sensor features a PinPoint LED for precise detection with a sensing range up to 900 mm, robust IP67 housing, and fast switching capabilities ideal for industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTE6-N4232 | Photoelectric sensors
Brand: SICK
SKU: 1070544
Alternatively Known As: Photoelectric proximity sensor, PinPoint LED sensor, Industrial photoelectric sensor, SICK GTE6 sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Digital output type: NPN
- Switching mode: Light/dark switching selectable
- Signal voltage NPN HIGH/LOW: Approx. VS / ≤ 3 V
- Output current max: ≤ 100 mA
- Response time: < 1.25 ms
- Switching frequency: 500 Hz
- Housing material: Plastic ABS/PC
- Front screen material: Plastic PMMA
- Connection: Male connector M8, 4-pin
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 40 mm to 760 mm, max up to 900 mm
- PinPoint LED light source with visible red light at 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Stainless steel mounting bracket included
- IP67 rated enclosure for dust and water protection
- Fast response time under 1.25 ms and switching frequency of 500 Hz
- Selectable light/dark switching mode with NPN digital output
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTE6-N4232 Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
