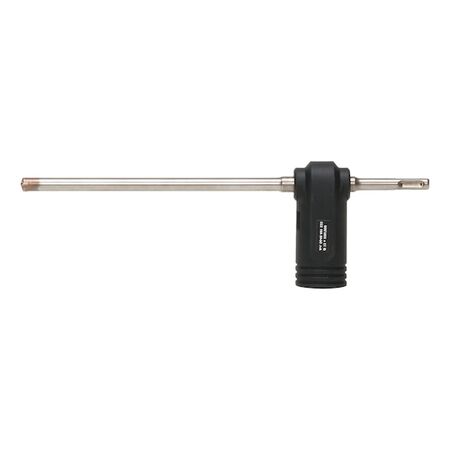

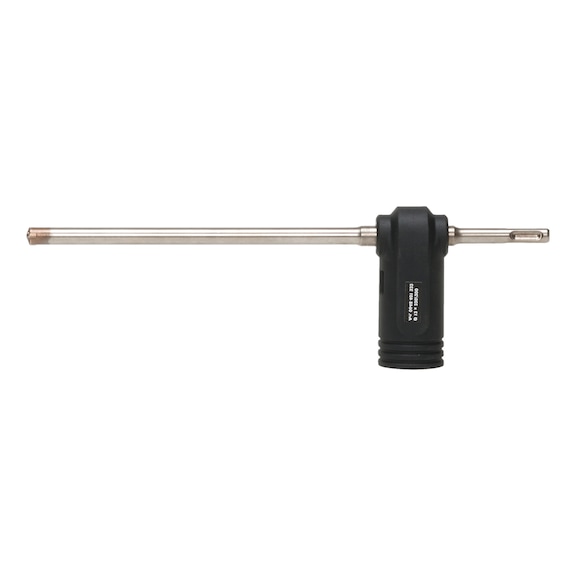

Hammer Drill Bit 12mm SDS-plus | Dust Extraction | 3 Cutting Edges | by Wurth
The Hammer Drill Bit 12mm SDS-plus is designed for dust-free drilling in concrete and masonry, featuring a unique dust extraction system that enhances user health and prolongs the drill bit's service life. With three cutting edges and a head geometry tailored for optimal drilling performance, this bit is perfect for construction sites requiring precision and cleanliness.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hammer Drill Bit 12mm SDS-plus | Dust Extraction | 3 Cutting Edges | by Wurth
Brand: Wurth
SKU: 648401232
Alternatively Known As: Hammer drill bit 12mm, SDS-plus drill bit, Dust extraction drill bit, Multi-cutter drill bit
Technical Specifications
- Diameter: 12 mm
- Length: 320 mm
- Working length: 200 mm
- Number of cutting edges: 3 PCS
- Tool holding device: Suitable for SDS-plus
- Drilling speed: 3 of 4 points
- Smoothness of running: 3 of 4 points
- Accuracy: 3 of 4 points
- Reinforcement strength: 2 of 4 points
- Service life: 4 of 4 points
- Dimensions (H x L x W): 320mm x 320mm x 12mm
- Weight: 0.5 kg
Key Features
- Dust-free drilling with immediate dust suction at the drill hole
- Protects user health and increases drill bit service life
- No subsequent cleaning of drill holes required
- Head geometry tailored to drill bit diameter for perfect drilling properties
- One-piece carbide element for 12-16 mm diameter for high stability
- Multi-piece carbide element for 18-24 mm diameter for faster drilling progress
- Trisection design improves buffering of torsional forces
- Suitable for all standard certified vacuum cleaners of dust class M
- Precise spot drilling capability
Professional Installation Requirements
- Use by trained professionals with appropriate dust class M vacuum cleaners; permission required from structural engineer for drilling iron reinforcements.
Applications
- Drilling in concrete and masonry with dust extraction
- Use with standard certified vacuum cleaners of dust class M
- Suitable for construction sites requiring dust-free drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust-free drilling reduces airborne dust pollution on construction sites
- Protects worker health by minimizing dust inhalation
- Reduces need for additional cleaning, saving water and cleaning agents
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Fast Hammer Drill Bit 12mm SDS-plus is available now for immediate purchase. Ideal for construction and machining applications requiring dust-free and precise drilling.
