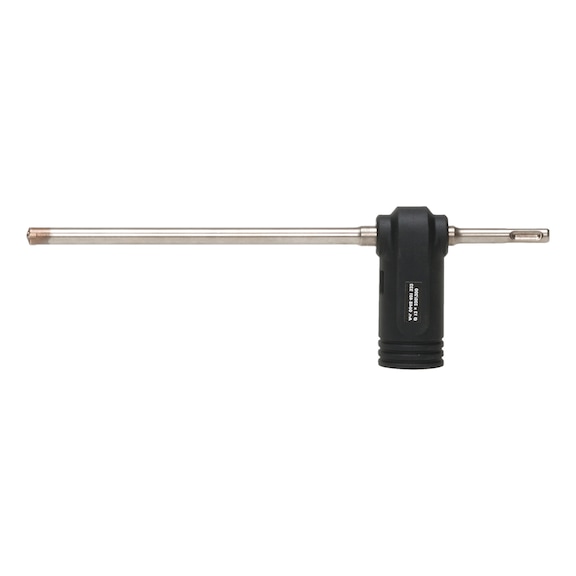

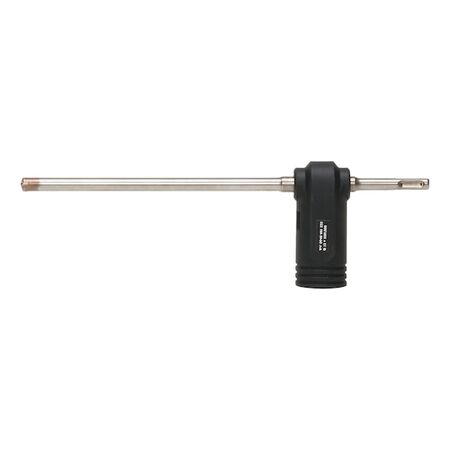

Hammer Drill Bit 16mm SDS-plus | Dust Extraction | 3 Cutting Edges | by Wurth
The Hammer Drill Bit 16mm SDS-plus is designed for efficient dust-free drilling in concrete and masonry. With a unique head geometry and three cutting edges, it ensures precise spot drilling while protecting user health by minimizing airborne dust. Ideal for construction sites, this drill bit enhances performance and extends service life, making it a must-have for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hammer Drill Bit 16mm SDS-plus | Dust Extraction | 3 Cutting Edges | by Wurth
Brand: Wurth
SKU: 648401637
Alternatively Known As: Hammer drill bit 16mm, SDS-plus drill bit, Dust extraction drill bit, Multi-cutter drill bit
Technical Specifications
- Diameter: 16 mm
- Length: 370 mm
- Working length: 250 mm
- Number of cutting edges: 3 PCS
- Tool holding device: Suitable for SDS-plus
- Drilling speed: 3 of 4 points
- Smoothness of running: 3 of 4 points
- Accuracy: 3 of 4 points
- Reinforcement strength: 2 of 4 points
- Service life: 4 of 4 points
- Dimensions (H x L x W): 16mm x 370mm x 16mm
- Weight: 0.5 kg
Key Features
- Dust-free drilling with immediate dust suction at the drill hole
- Protects user health and increases drill bit service life
- No subsequent cleaning of drill hole required
- Head geometry tailored to drill bit diameter for perfect drilling properties
- One-piece carbide element for 12-16 mm diameter for high stability
- Multi-piece carbide element for 18-24 mm diameter for faster drilling and torsional force buffering
- Suitable for all standard certified vacuum cleaners of dust class M
- Precise spot drilling capability
Professional Installation Requirements
- Use by trained professionals with appropriate dust class M vacuum cleaners is recommended for safety and optimal performance.
Applications
- Drilling in concrete and masonry with dust extraction
- Use with standard certified vacuum cleaners of dust class M
- Suitable for construction sites requiring dust-free drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems for safe use and dust control
Environmental Benefits
- Dust-free drilling reduces airborne dust pollution on construction sites
- Protects worker health by minimizing inhalation of harmful dust
- Reduces need for additional cleaning, lowering water and chemical use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Fast Hammer Drill Bit 16mm SDS-plus is available now for immediate purchase. Ideal for construction and machining applications requiring dust-free drilling.
