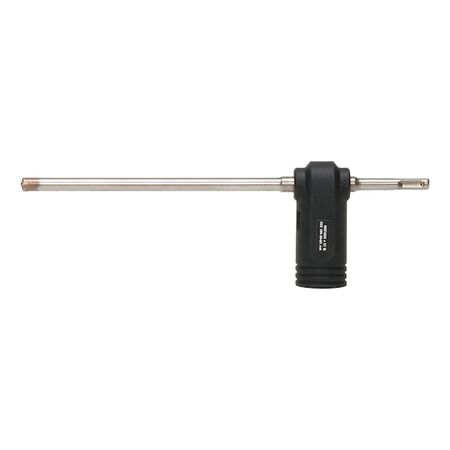

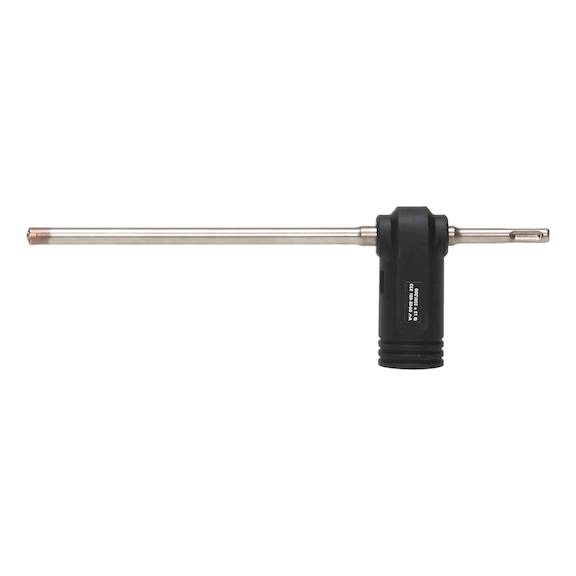

Hammer Drill Bit 20mm SDS-plus | Dust Extraction | 4 Cutting Edges | by Wurth
The Hammer Drill Bit 20mm SDS-plus is designed for efficient dust-free drilling in concrete and masonry. With a unique head geometry and four cutting edges, it ensures precise spot drilling while protecting user health by minimizing dust inhalation. Ideal for professional construction applications, this drill bit is compatible with standard certified vacuum cleaners of dust class M, making it perfect for construction sites requiring clean work environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hammer Drill Bit 20mm SDS-plus | Dust Extraction | 4 Cutting Edges | by Wurth
Brand: Wurth
SKU: 648402037
Alternatively Known As: Hammer drill bit 20mm, SDS-plus drill bit, Dust extraction drill bit, Multi-cutter hammer drill
Technical Specifications
- Diameter: 20 mm
- Length: 370 mm
- Working length: 250 mm
- Number of cutting edges: 4 PCS
- Tool holding device: Suitable for SDS-plus
- Drilling speed (point system): 3 of 4 points
- Smoothness of running (points system): 3 of 4 points
- Accuracy (point system): 3 of 4 points
- Reinforcement strength (points system): 2 of 4 points
- Service life (points system): 4 of 4 points
- Dimensions (H x L x W): 20mm x 370mm x 20mm
- Weight: 0.5 kg
Key Features
- Dust-free drilling with immediate dust suction at the drill hole
- Protects user health and increases drill bit service life
- No subsequent cleaning of drill holes required
- Head geometry tailored to drill bit diameter for perfect drilling properties
- One-piece carbide element for 12-16 mm diameters for high stability
- Multi-piece carbide element for 18-24 mm diameters for faster drilling and improved torsional force buffering
- Suitable for all standard certified vacuum cleaners of dust class M
- Precise spot drilling capability
Professional Installation Requirements
- Use by trained professionals with appropriate dust class M vacuum cleaners; permission required from structural engineer before drilling iron reinforcements.
Applications
- Drilling in concrete and masonry with dust extraction
- Use with standard certified vacuum cleaners of dust class M
- Suitable for construction sites requiring dust-free drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust-free drilling reduces airborne dust pollution on construction sites
- Protects worker health by minimizing dust inhalation
- Reduces need for additional cleaning, lowering water and chemical use
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Fast Hammer Drill Bit 20mm SDS-plus is available now for immediate purchase. Ideal for professional construction and machining applications requiring dust-free drilling.
