Trade Discount 20%

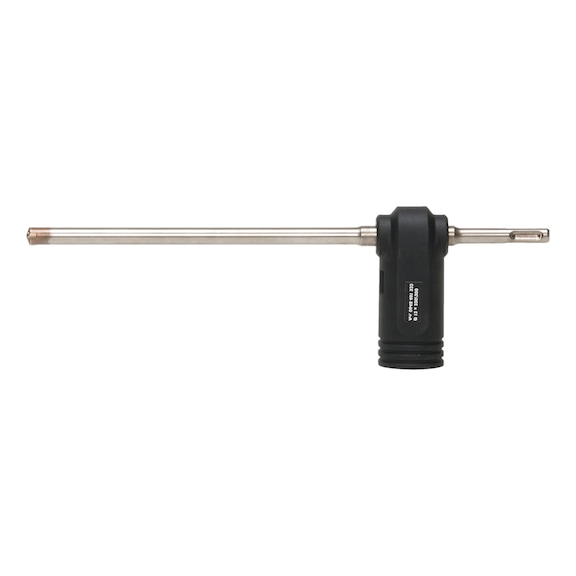

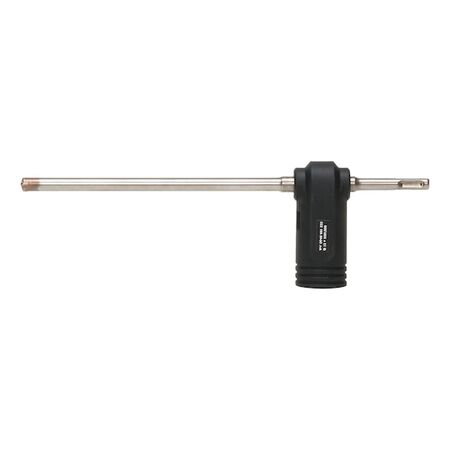

Hammer Drill Bit 24mm SDS-plus Dust Extraction 4 Cutting Edges Wurth
The Hammer Drill Bit 24mm SDS-plus is designed for efficient dust-free drilling in concrete and masonry.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Diameter: 24 mm
- Length: 370 mm
- Working length: 250 mm
- Number of cutting edges: 4
- Tool holding device: Suitable for SDS-plus
- Drilling speed rating: 3/4
- Smoothness of running rating: 3/4
- Accuracy rating: 3/4
- Reinforcement strength rating: 2/4
- Service life rating: 4/4
- Dimensions (H x L x W): 24mm x 370mm x 24mm
- Weight: 0.5 kg
Key Features
- Dust-free drilling with immediate dust suction at the drill hole
- Protects user health and increases drill bit service life
- No subsequent cleaning of drill holes required
- Head geometry tailored to drill bit diameter for perfect drilling properties
- One-piece carbide element for 12-16 mm diameters for high stability
- Multi-piece carbide element for 18-24 mm diameters for faster drilling and improved torsional force buffering
- Suitable for all standard certified vacuum cleaners of dust class M
- Precise spot drilling capability
Professional Installation Requirements
- Use by trained professionals with appropriate dust class M vacuum extraction systems. Iron reinforcements may only be drilled with structural engineer approval.
Applications
- Drilling in concrete and masonry with dust extraction
- Use with standard certified vacuum cleaners of dust class M
- Suitable for construction sites requiring dust-free drilling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust-free drilling reduces airborne dust particles, improving site air quality and worker health
- Minimizes environmental dust pollution on construction sites
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Fast Hammer Drill Bit 24mm SDS-plus is available now for immediate purchase. Ideal for construction and machining applications requiring dust-free, efficient drilling.
