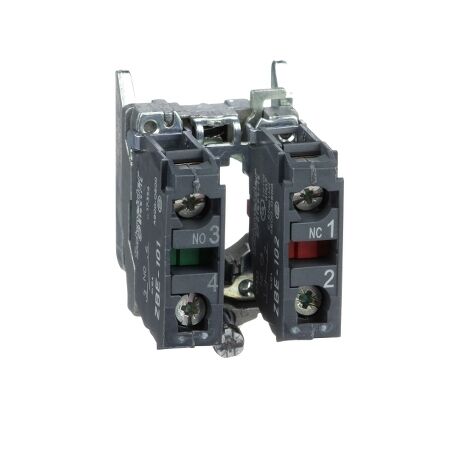

Harmony XB4, Single contact block with body fixing collar, metal, screw clamp terminal, 1NO+1NC

Harmony XB4 Contact Block | 1NO+1NC | Metal Screw Clamp | IP20 by Clipsal

BRAND: Clipsal

SKU: ZB4BZ105

$39.20 List price: $58.80

+ −

30 Days Return Delivery Options

Harmony XB4 contact block with 1NO+1NC configuration and metal screw clamp terminal—ideal for industrial control panels and automation systems. Built for durability with IP20 rating and wide temperature range.

Description
Attachments

Product Name/Title: Harmony XB4, Single contact block with body fixing collar, metal, screw clamp terminal, 1NO+1NC

Brand: Clipsal

SKU: ZB4BZ105

Alternatively Known As: Harmony XB4 Contact Block, XB4 Push Button Block

Technical Specifications

Contact configuration: 1NO + 1NC
Mechanical durability: 5,000,000 cycles
Electrical durability: 10,000,000 cycles
IP Rating: IP20
Rated operational current: 3 A at 240 V, AC-15
Rated insulation voltage: 600 V
Rated impulse withstand voltage: 6 kV
Dimensions (H x L x W): 47mm x 37mm x 30mm
Weight: 0.062 kg

Key Features

Wide operating temperature range from -40°C to 70°C.
Pre-assembled with a body fixing collar and contact block.

Professional Installation Requirements

Professional installation is recommended for optimal performance.

Applications

Industrial: Control panels, machinery, automation systems

Standards & Compliance

Complies with IEC 60947-1 and IEC 60947-5-1 standards.

Environmental Benefits

Packaging made with recycled cardboard.
Green Premium product status.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Harmony XB4 Single Contact Block is available now for immediate purchase. Ideal for industrial control applications.

ZB4BZ105 (ZB4BZ105, 684 Kb) [Download]
