Hazardous Brass Plug M63 | Nickel Plated | IP66/68 Rated | @Each by Wattmaster

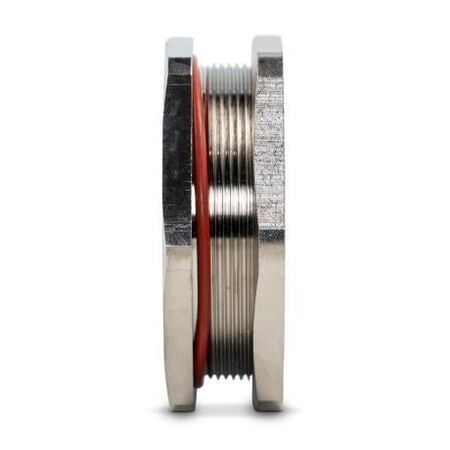

The Hazardous Brass Plug M63 is designed for sealing unused cable entries in hazardous electrical enclosures. With a robust nickel-plated brass construction and an IP66/68 rating, it ensures a secure seal against water ingress. Ideal for both indoor and outdoor use, this plug is perfect for industrial environments, providing reliable protection in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hazardous Brass Plug M63 | Nickel Plated | IP66/68 Rated | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBPBM63
Alternatively Known As: Hazardous Brass Cable Gland Plug, M63 Brass Plug, Nickel Plated Brass Plug, Hazardous Area Plug
Technical Specifications
- Thread Size: M63
- Thread Length: 17.5mm
- Material: Brass, Nickel Plated
- Seal Material: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Dimensions (H x L x W): 25mm x 40mm x 63mm
- Weight: 0.15 kg
Key Features
- Suitable for indoor or outdoor use
- Temperature range from -60°C to +130°C
- Provides a secure seal on enclosures for unused entries
- High degree of protection against water ingress with IP66/68 rating
- Includes locknut as standard for secure fitting
- Protection types include Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Complies with IECEx CES 13.0022X certification
- Constructed from brass with nickel plating for durability
- Silicone seal for enhanced sealing performance
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical enclosures
- Sealing unused cable entries in industrial and hazardous environments
- Protection of electrical equipment in explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating extend product life, reducing waste
- Seals enclosures to prevent ingress of contaminants, protecting equipment and reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Hazardous Brass Plug M63 Thread Length 17.5mm by Wattmaster is available for immediate purchase, ideal for sealing unused entries in hazardous electrical enclosures.
