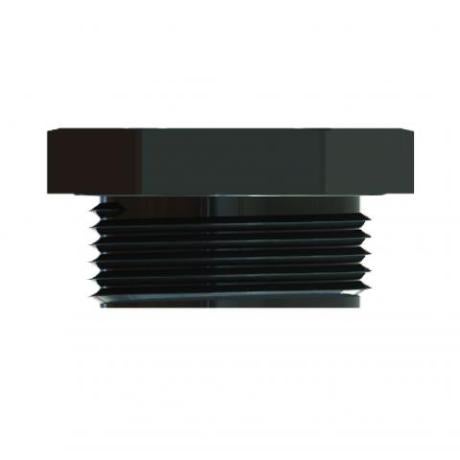

Hazardous Nylon Plug M63 | 18mm Thread Length | IP66/68 Rated | Locknut & Silicone Seal | by Wattmaster
The Hazardous Nylon Plug M63 is designed for sealing unused entries in hazardous electrical enclosures, featuring an 18mm thread length and a secure silicone seal. With an IP66/68 rating, it provides excellent protection against water ingress, making it ideal for both indoor and outdoor electrical installations in industrial environments. Built from durable nylon, this plug ensures long-lasting performance and compliance with explosive atmosphere standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hazardous Nylon Plug M63 | 18mm Thread Length | IP66/68 Rated | Locknut & Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBPPM63
Alternatively Known As: Hazardous Nylon Cable Plug, Nylon Threaded Plug M63, Industrial Nylon Plug with Seal
Technical Specifications
- Material: Nylon PA6 plated
- Seal: Silicone
- Thread Size: M63
- Thread Length: 18mm
- Temperature Range: -60°C to +80°C
- Ingress Protection: IP66/68
- Compliance: IECEx IMQ 13.0003X
- Protection Types: Ex eb IIC Gb, Ex tb IIIC Db
- Standards: IEC/AS/NZS60079 (.0, .7, .31), IEC/AS/NZS 60529
- Dimensions (H x L x W): 18mm x 63mm x 63mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor or outdoor use
- Temperature range from -60°C to +80°C
- Provides a secure seal on enclosure for unused entries
- High degree of protection against water ingress with IP66/68 rating
- Locknut supplied as standard for secure fitting
- Protection types include Ex eb IIC Gb and Ex tb IIIC Db
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with hazardous area electrical installations to ensure compliance and safety.
Applications
- Sealing unused entries in hazardous area enclosures
- Indoor and outdoor electrical installations requiring ingress protection
- Industrial environments with explosive atmospheres
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable nylon material extends product life reducing waste
- Silicone seal ensures long-lasting protection reducing maintenance frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Hazardous Nylon Plug M63 Thread Length 18mm with Locknut & Silicone Seal is available for immediate purchase, ideal for sealing unused entries in hazardous electrical enclosures.
