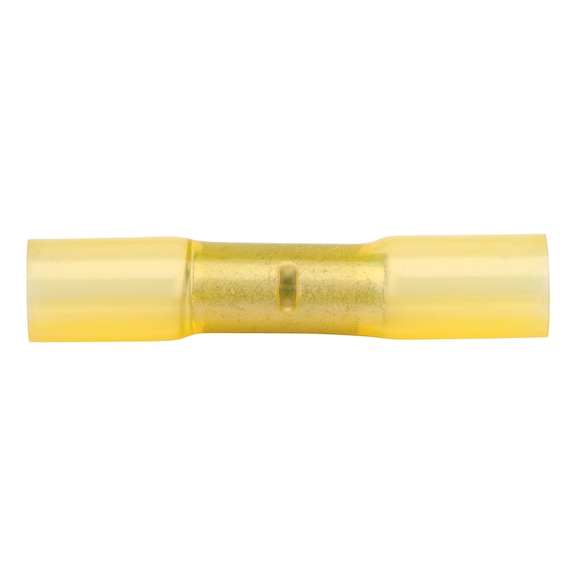

Heat-Shrink Crimp Butt Connector | IP67 Rated | 4-6 mm² Wire | Yellow | @Pack of 10 | by Wurth
Heat-shrink crimp butt connectors are essential for reliable electrical wiring and cable connections. With an IP67 rating and a wire cross-section of 4-6 mm², these connectors ensure dust-proof and damp-proof connections. Ideal for automotive, industrial, and marine applications, they feature a semi-transparent design for easy monitoring and a 40% faster shrinking process, making them perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Butt Connector | IP67 Rated | 4-6 mm² Wire | Yellow | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5555104
Alternatively Known As: Heat shrink butt connector, heat shrink crimp connector, waterproof crimp connector, electrical butt splice, heat shrink splice connector
Technical Specifications
- Wire cross section: 4-6 mm²
- Colour: Yellow
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Temperature range: -55 to 125 °C
- Minimum shrinkage temperature: 300 °C
- Length: 40 mm
- Dimensions (H x L x W): 6mm x 40mm x 6mm
- Weight: 0.02 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal electrical safety and performance.
Applications
- Electrical wiring and cable connections
- Automotive wiring repairs
- Industrial electrical installations
- Marine and outdoor electrical connections requiring waterproofing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable and long-lasting connections reduce waste and need for replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Heat-Shrink Crimp Butt Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring repairs and installations requiring durable, waterproof connections.
