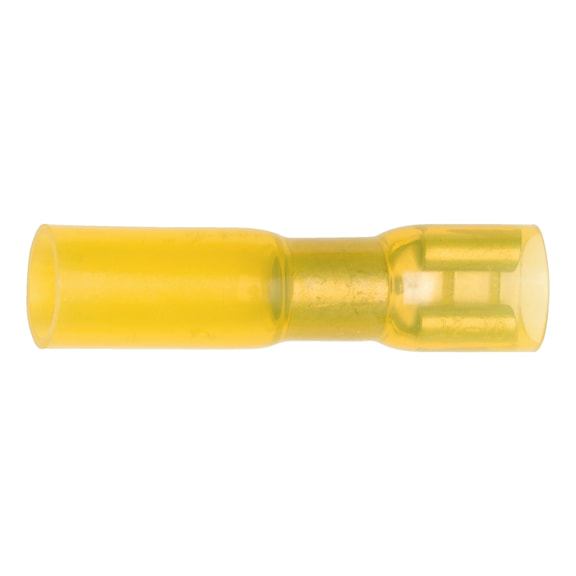

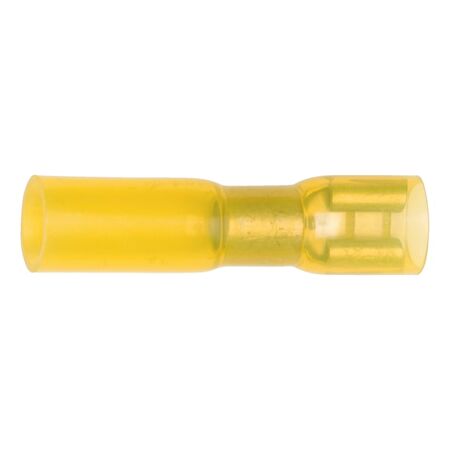

Heat Shrink Crimp Connector | Yellow | IP67 Rated | 40% Faster Shrinking | @Pack of 10 | by Wurth
Heat shrink crimp connector designed for 4-6 mm² wire cross sections, featuring a durable yellow color and IP67 protection. Ideal for electrical wiring and cable connections that require dust-proof and damp-proof protection, this connector ensures reliable insulation and moisture resistance, making it perfect for automotive and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Crimp Connector | Yellow | IP67 Rated | 40% Faster Shrinking | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 555512400
Alternatively Known As: Heat shrink push connector, heat shrink crimp connector, heat shrink tubing connector, yellow heat shrink connector
Technical Specifications
- Min./max. wire cross section: 4-6 mm²
- Colour: Yellow
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP 67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 40mm x 6.3mm
- Weight: 0.02 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Electrical wiring and cable connections requiring dust-proof and damp-proof protection
- Automotive and industrial electrical installations
- Use in environments needing reliable insulation and protection from moisture
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring restriction of hazardous substances
- Durable protection extends cable life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Heat Shrink Crimp Connector PSHCON HSHRTUBE Yellow 4-6mm² 10 PCS is available now for immediate purchase. Ideal for electrical wiring requiring durable, moisture-resistant connections.
