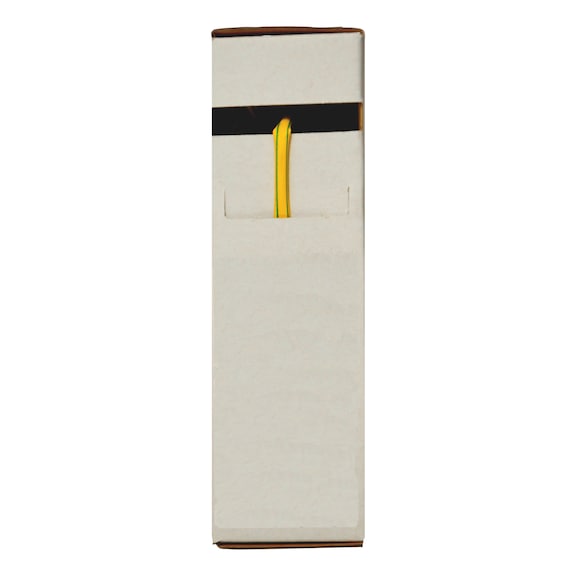

Heat Shrink Sleeve | Polyolefin Material | Flame-Retardant | High Dielectric Strength | by Wurth
Heat Shrink Sleeve made from durable polyolefin material offers exceptional electrical insulation and protection. With a high dielectric strength of 15 kV/mm and a temperature resistance range of -55 to 125 °C, it's perfect for automotive and industrial wiring applications. Available in green and yellow, this sleeve ensures reliable performance in various environments, making it an essential choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Sleeve | Polyolefin Material | Flame-Retardant | High Dielectric Strength | by Wurth
Brand: Wurth
SKU: 771532
Alternatively Known As: Heat Shrink Sleeve, Heat Shrink Tubing, Electrical Insulation Sleeve, Polyolefin Shrink Tube
Technical Specifications
- Material: Polyolefin
- Colour: Green, Yellow
- Diameter: 3.5 mm
- Diameter (shrunk): 1.5 mm
- Sleeve-wall thickness when shrunk: 0.55 mm
- Dielectric strength: 15 kV/mm
- Min./max. shrinkage temperature: 70 to 120 °C
- Min./max. temperature conditions: -55 to 125 °C
- Length: 15 m
- Flame-retardant: Yes
- Dimensions (H x L x W): 172mm x 163mm x 50mm
- Weight: 0.1 kg
Key Features
- Flame-retardant polyolefin material
- High dielectric strength of 15 kV/mm
- Shrinkage temperature range from 70 to 120 °C
- Temperature resistance from -55 to 125 °C
- Sleeve-wall thickness when shrunk is 0.55 mm
- Available in green and yellow colors
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection
- Wire and cable bundling
- Environmental protection for electrical connections
- Automotive and industrial wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable flame-retardant material reduces need for frequent replacements
- Protects electrical connections, preventing short circuits and electrical waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Polyolefin Heat Shrink Tubing is available for immediate purchase, ideal for electrical insulation and protection in residential, commercial, and industrial applications.
