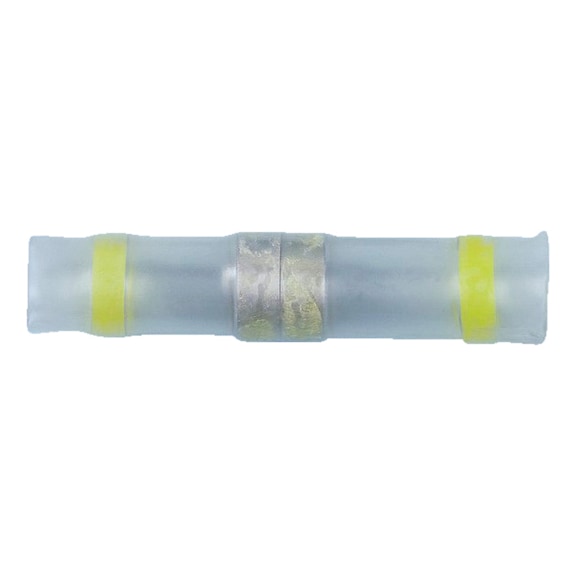

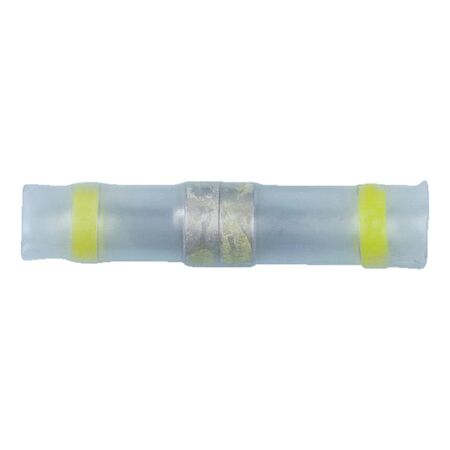

Heat-Shrink Solder Butt Connector | IP67 Rated | Pre-Filled with Solder | Yellow | @Pack of 10 | by Wurth
Heat-shrink solder butt connectors are essential for creating secure and moisture-resistant electrical joints. With a wire cross-section range of 4.00-6.00 mm² and an IP67 rating, these connectors are perfect for automotive, marine, and industrial applications. The semi-transparent tubing allows for easy visual monitoring, ensuring reliable connections in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Solder Butt Connector | IP67 Rated | Pre-Filled with Solder | Yellow | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5559233
Alternatively Known As: Heat shrink solder sleeve, solder splice connector, heat shrink butt connector, solder seal wire connector
Technical Specifications
- Wire cross section range: 4.00-6.00 mm²
- Maximum bundle diameter: 6.0 mm
- Colour: Yellow
- Dielectric strength: 2 kV/mm
- IP protection class: IP67
- Operating temperature range: -55 to 125 °C
- Minimum shrinkage temperature: 500 °C
- Length: 42 mm
- Dimensions (H x L x W): 6mm x 42mm x 6mm
- Weight: 0.02 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- Pre-filled with solder for secure and reliable electrical joints
- Avoids localized overheating of the heat-shrink tubing
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper soldering and heat-shrink application for safety and reliability.
Applications
- Electrical wiring and repair
- Automotive wiring harnesses
- Marine and outdoor electrical connections
- Industrial and household electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides long-lasting, sealed connections reducing the need for frequent repairs and waste
- Protects connections from moisture and dust, enhancing durability and reducing environmental impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Heat-Shrink Solder Butt Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring repairs and installations requiring durable, moisture-resistant connections.
