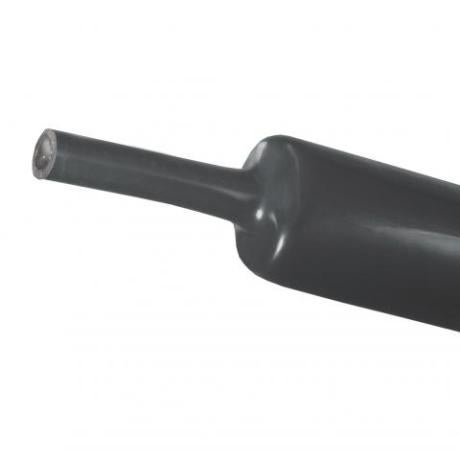

Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | Waterproof & UV Resistant | 1.2m Length | by Wattmaster
Heatshrink Medium Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection. With a 3:1 shrink ratio and waterproof glue lining, it ensures secure sealing and mechanical strength. Ideal for electricians, this flexible and UV resistant tubing is designed for heavy-duty applications, providing long-lasting protection against environmental factors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Medium Dual Wall Glue Lined | 3:1 Shrink Ratio | Waterproof & UV Resistant | 1.2m Length | by Wattmaster
Brand: Wattmaster
SKU: HSMWGL115/34L
Alternatively Known As: Heatshrink tubing, Dual wall heat shrink, Glue lined heatshrink, Waterproof heatshrink tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Ratio: 3:1
- Size Range: 117.4mm to 34.3mm diameter
- Length: 1.2 meters
- Shrink Temperature: Above 110°C
- Radial Shrinking Ratio: > 50%
- Longitudinal Shrinking Ratio: 10%
- Elongation at Break: 580%
- Flame Retardant and UV Resistant
- Glue lined for waterproof sealing
- Dimensions (H x L x W): 1200mm x 34mm x 117mm
- Weight: 0.1 kg
Key Features
- Heatshrink suitable for heavy duty and general purpose use
- Material: Ethylene Vinyl Acetate
- Glue lined and waterproof for greater mechanical strength
- Low shrink temperature and flame retardant
- Flexible and UV resistant
- Shrink temperature above 110°C
- Radial shrinking ratio greater than 50%
- Longitudinal shrinking ratio of 10%
- Elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper heat application and secure sealing.
Applications
- Electrical insulation
- Termination and splicing of cables
- Cable bundling and protection
- Strain relief for cable joints
- Waterproof cable joints and terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides long-lasting protection reducing cable replacement and waste
- UV resistant material extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Heatshrink Medium Dual Wall Glue Lined 3:1 Ratio is available for immediate purchase, ideal for electrical insulation and cable protection applications.
