Heatshrink Tape 20mm Wide | 50m Roll | Waterproof Seal & Chemical Resistance | Black by Cabac

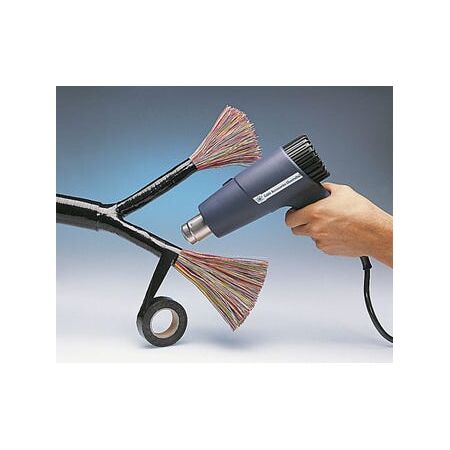

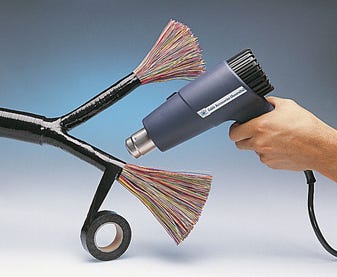

Cabac Heatshrink Tape 20mm wide 50m roll is a thin irradiated polyolefin tape that shrinks and amalgamates to form a rigid, waterproof seal ideal for sealing complex shapes, repairing cables, and forming T-joints.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Tape 20mm wide 50m Roll
Brand: Cabac
SKU: HST20
Alternatively Known As: Heat shrink tape, Heat shrink tubing tape, Cable repair tape, Waterproof electrical tape, Polyolefin heat shrink tape
Technical Specifications
- Material: Irradiated polyolefin
- Colour: Black
- Size: 20mm width x 50m length roll
- Approximate thickness: 0.1mm
- Storage temperature: Up to 90°C
- Operating temperature: -55°C to +105°C
- Shrinkage temperature: Above 130°C
- Tensile strength: 0.5 kg/mm²
- Elongation at breaking point: 250%
- Breakdown voltage: 30 kV/mm thickness
- Volume resistivity: Above 1 x 10^15 ohm cm
- Water absorption: 0.1%
- UV resistance: General UV stabilised
- Dimensions (H x L x W): 1mm x 50000mm x 20mm
- Weight: 0.1 kg
Key Features
- High mechanical strength and rigid once shrunk
- Low water absorption
- Excellent chemical resistance
- Irradiated polyolefin which shrinks and amalgamates above 130°C
- Becomes continuous insulation with variable wall thickness
- Excellent for creating a waterproof seal
Professional Installation Requirements
- Professional installation recommended to ensure proper application and shrinkage for effective sealing and insulation.
Applications
- Sealing complex shapes in electrical and cable installations
- Repairing damaged cables
- Forming T-joints and junctions in wiring
- Creating waterproof seals in cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable waterproof seal reduces need for frequent repairs and replacements
- Chemical resistance extends product life, reducing waste
- Low water absorption helps prevent environmental damage to cables
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms.
Available Now
The Cabac Heatshrink Tape 20mm wide 50m Roll is available now for immediate purchase. Ideal for electrical cable sealing, repair, and waterproofing applications.
