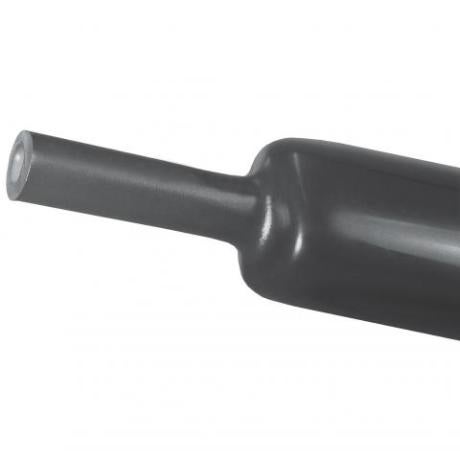

Heatshrink Thick Dual Wall Glue Lined | Waterproof & UV Resistant | 54-15.6mm | by Wattmaster
Heatshrink Thick Dual Wall Glue Lined tubing is perfect for electrical insulation and cable protection. Made from Ethylene Vinyl Acetate, it offers waterproof sealing and UV resistance, ensuring durability and flexibility. With a shrink temperature above 110°C and a radial shrink ratio greater than 50%, this tubing is ideal for qualified electricians looking to ensure safe and reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thick Dual Wall Glue Lined | Waterproof & UV Resistant | 54-15.6mm | by Wattmaster
Brand: Wattmaster
SKU: HSTKWGL51/16
Alternatively Known As: Thick Wall Heatshrink Tubing, Dual Wall Heatshrink, Glue Lined Heatshrink, Waterproof Heatshrink Tubing
Technical Specifications
- Material: Ethylene Vinyl Acetate
- Shrink Temperature: Above 110°C
- Radial Shrink Ratio: > 50%
- Longitudinal Shrink Ratio: 10%
- Dielectric Strength: ≥ 20 kV/mm (IEC243)
- Elongation at Break: 580%
- UV Resistant
- Flame Retardant
- Dimensions (H x L x W): 15mm x 1200mm x 54mm
- Weight: 0.1 kg
Key Features
- Thick dual wall heatshrink with glue lining for waterproof sealing
- Made from Ethylene Vinyl Acetate for flexibility and UV resistance
- Low shrink temperature and flame retardant
- High mechanical strength due to glue lining
- Shrink temperature above 110°C
- Radial shrink ratio greater than 50%
- Longitudinal shrink ratio of 10%
- Dielectric strength ≥ 20 kV/mm according to IEC243
- Elongation at break of 580%
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper application and compliance with electrical safety standards.
Applications
- Electrical insulation
- Termination and splicing of cables
- Cable bundling and protection
- Strain relief for electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
The Wattmaster Heatshrink Thick Dual Wall Glue Lined 54-15.6mm 1.2m Black is available for immediate purchase, ideal for electrical insulation and cable protection applications.
