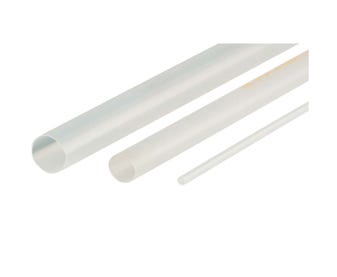

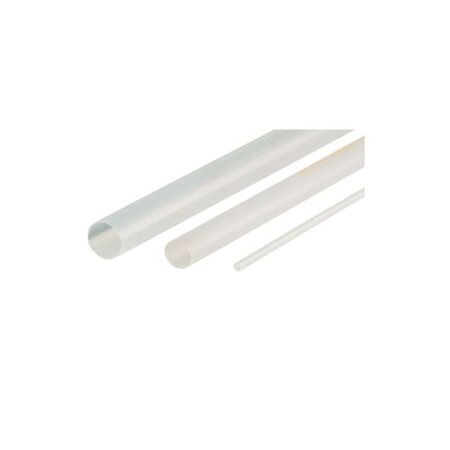

Heatshrink Thin Wall 3.2MM Clear | Highly Flexible & Flame Retardant | 200M Reel by Cabac
Cabac Heatshrink Thin Wall 3.2MM Clear 200M Reel is a chemically cross-linked polyolefin tubing designed for electrical insulation, colour coding, and mechanical protection, operating between -75°C to +135°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 3.2MM Clear 200M Reel
Brand: Cabac
SKU: XLP3CL
Alternatively Known As: Heat Shrink Tubing, Thin Wall Heatshrink, Electrical Heatshrink, Polyolefin Heatshrink, XLP Heatshrink Tubing
Technical Specifications
- Material: Chemically cross-linked, thermally stabilised flame retardant polyolefin
- Continuous Operating Temperature: -75°C to +135°C
- Shrinkage Temperature: >100°C
- Longitudinal Shrinkage: <5%
- Tensile Strength: 16 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Volume Resistivity: 1.0 x 10^14 ohm cm
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Flammability: Passed ASTM-D-2671 (except clear is flammable)
- UV Stability: All tubing stable except clear
- Voltage Rating: 600V
- Compliant Standards: UL224 VW1 File No. E366157
- Conformant Standards: MIL-1-23053/5 Class 2 for clear variant
- Dimensions (H x L x W): 50mm x 200000mm x 3200mm
- Weight: 0.5 kg
Key Features
- Highly flexible
- Flame retardant except clear variant
- Abrasion and impact resistant
- Suitable for all electrical and electronic applications
- Available in a full range of diameters from 1.5mm to 125mm with 2:1 shrink ratio
- Available on reels or 4ft (1.2m) lengths
- UV stabilised except clear variant
Professional Installation Requirements
- Professional installation is recommended to ensure proper shrinking and insulation integrity using appropriate heat guns or heat tunnels.
Applications
- Electrical insulation
- Colour coding of wires and cables
- Mechanical protection for electrical and electronic applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and abrasion resistant, reducing the need for frequent replacements
- UV stabilised material (except clear) extends product life in outdoor applications
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Heatshrink Thin Wall 3.2MM Clear 200M Reel is available now for immediate purchase. Ideal for electrical insulation, colour coding, and mechanical protection in electrical and electronic applications.
