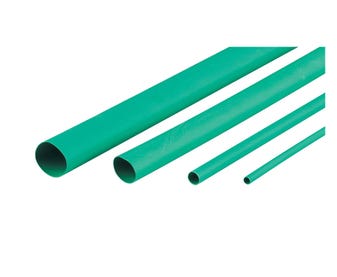

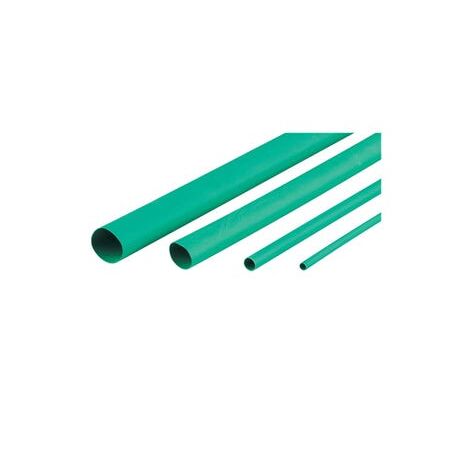

Heatshrink Thin Wall Tubing 1.6MM Green | Flame Retardant | Flexible & UV Resistant by Cabac
The Cabac Heatshrink Thin Wall 1.6MM Green is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding. It offers resistance to abrasion, UV radiation, and common fluids, suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 1.6MM Green
Brand: Cabac
SKU: XLP1.5G
Alternatively Known As: Thin Wall Heat Shrink Tubing, Green Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 degrees Celsius
- Shrinkage Temperature: > 105 degrees Celsius
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 degrees Celsius for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Provides protection against environmental damage, reducing electrical failures and waste
Warranty Information
Warranty information is not specified; please refer to Cabac's standard product warranty policies.
Available Now
The Cabac Heatshrink Thin Wall 1.6MM Green is available for immediate purchase, ideal for electrical insulation and protection applications in industrial, commercial, and residential settings.
