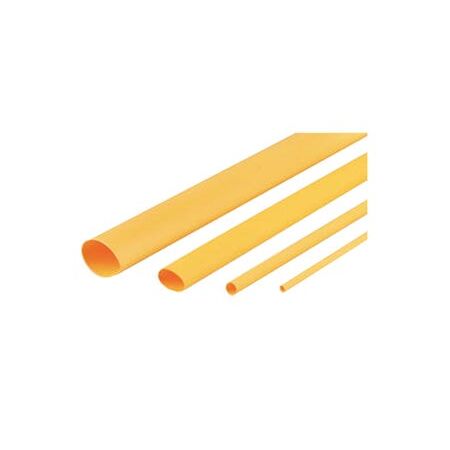

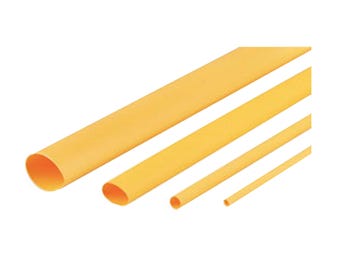

Heatshrink Thin Wall Tubing 2.4MM | -75 to +135°C | Flame Retardant & UV Resistant | Flexible by Cabac
The Cabac Heatshrink Thin Wall 2.4MM tubing is a flame retardant, flexible polyolefin heat shrink tubing designed for electrical insulation, protection, and colour coding with resistance to fluids, abrasion, and UV radiation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 2.4MM Box
Brand: Cabac
SKU: XLP2.5Y
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeving
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 200000mm x n/a mm
- Weight: 0.5 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Flexible and impact resistant
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection in electrical and associated industries
- Environmental protection against fluids, solvents, abrasion, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Provides durable protection extending the lifespan of electrical components
- Reduces waste by protecting wiring from damage and environmental exposure
- UV stabilized to maintain performance and reduce replacement frequency
Warranty Information
Warranty information not specified; typically covered by manufacturer against defects.
Available Now
The Cabac Heatshrink Thin Wall 2.4MM tubing is available for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
