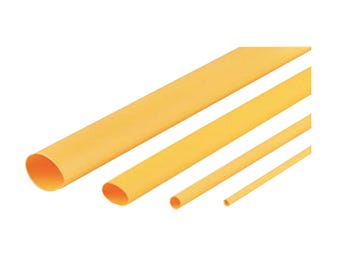

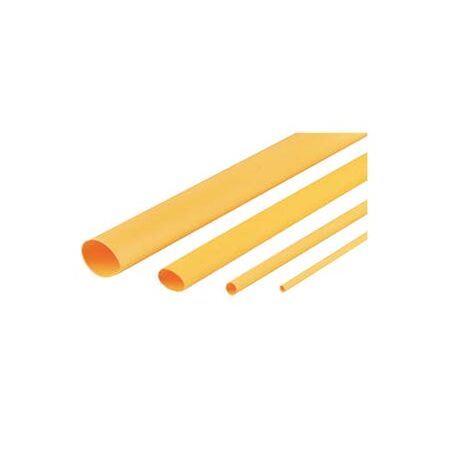

Heatshrink Thin Wall Tubing 25.4MM | Flame Retardant | Flexible & Durable | 50m Roll by Cabac
The Cabac Heatshrink Thin Wall 25.4MM is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding with resistance to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 25.4MM Box
Brand: Cabac
SKU: XLP25Y
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 25mm
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 25.4mm
- After-shrink diameter: 12.7mm
- Recovered wall thickness: 0.87mm
- Length: 50m roll
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL224 VW1 File No. E366157 certified
- Complies with ASTM D2671
- Dimensions (H x L x W): 254mm x 50000mm x 254mm
- Weight: 0.3 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, impact and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and durable for electrical and mechanical protection
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate heat guns such as CABAC HG2232 or HG2233 for proper shrinking and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in wiring and cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty details available upon request from Cabac; typically covers manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 25.4MM tubing is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
