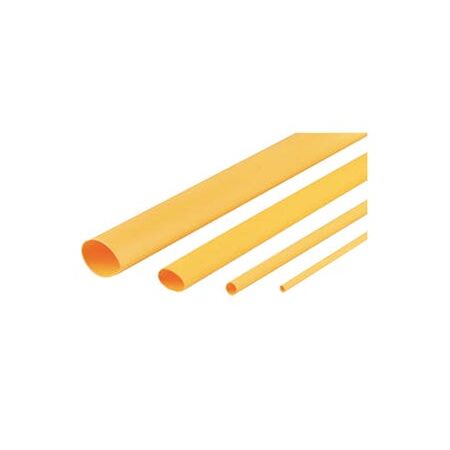

Heatshrink Thin Wall Tubing 25.4MM | -75 to +135°C | Flame Retardant & UV Resistant | Flexible by Cabac
The Cabac Heatshrink Thin Wall 25.4MM 1.2M is a flame retardant, flexible polyolefin tubing designed for electrical insulation, protection, and colour coding. It offers resistance to abrasion, UV radiation, and common solvents, suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 25.4MM Box 1.2M
Brand: Cabac
SKU: XLP25Y/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 25mm, Yellow Heatshrink Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified: UL224 VW1 File No. E366157
- Complies with ASTM D2671
- Dimensions (H x L x W): n/a mm x 1200mm x n/a mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Installation requires heating the tubing evenly using a heat gun, preferably a CABAC heat gun (Part No. HG2232 or HG2233), by a qualified professional to ensure proper shrinkage and insulation.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces the need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing failure and electronic waste
Warranty Information
Warranty details are provided by the manufacturer; typically covers manufacturing defects.
Available Now
The Cabac Heatshrink Thin Wall 25.4MM 1.2M tubing is available for immediate purchase. Ideal for electrical insulation and protection in residential, commercial, and industrial applications.
