Heatshrink Thin Wall Tubing 50.8MM | -75 to +135°C | Flame Retardant & UV Resistant | 1.2M by Cabac

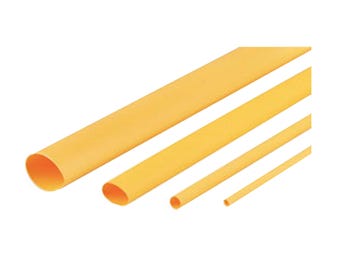

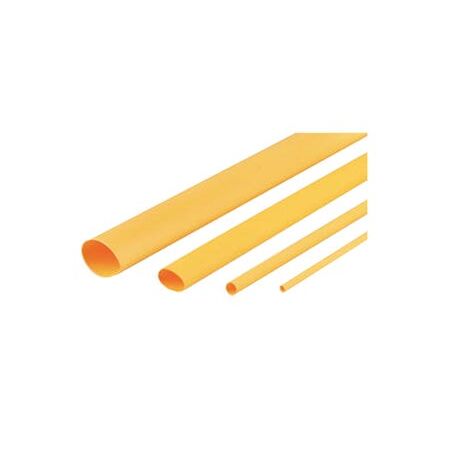

Cabac Heatshrink Thin Wall 50.8MM 1.2M yellow polyolefin tubing provides flame retardant, flexible, and UV resistant insulation and protection for electrical conductors, suitable for a wide range of electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 50.8MM Box 1.2M
Brand: Cabac
SKU: XLP51Y/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Polyolefin Heatshrink Sleeve, Electrical Insulation Tubing, Heat Shrink Sleeve 50.8mm
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 50.8mm
- After-shrink diameter: 25.4mm
- Recovered wall thickness: 1.1mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135 °C
- Shrinkage Temperature: > 105 °C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250 °C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 50.8mm x 1200mm x 50.8mm
- Weight: 0.05 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Operating temperature range from -75 to +135 degrees Celsius
- Resistant to common fluids, solvents, and abrasion
- UV resistant except for clear variant
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Flexible and impact resistant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Mechanical protection against impact and abrasion
- Environmental protection against fluids, solvents, and UV radiation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, reducing waste
- Protects electrical components, enhancing energy efficiency and safety
Warranty Information
Warranty information not specified; typically covered by manufacturer standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 50.8MM 1.2M tubing is available for immediate purchase, ideal for electrical insulation and protection applications.
