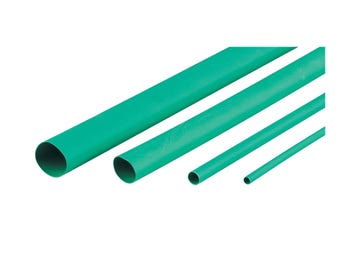

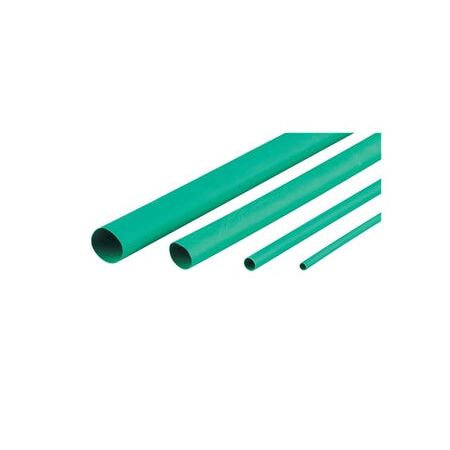

Heatshrink Thin Wall Tubing 6.4MM Green | Flame Retardant | Flexible & UV Resistant | 1.2M by Cabac
Cabac Heatshrink Thin Wall 6.4MM Green 1.2M is a flame retardant, flexible heat shrink tubing used for electrical insulation, protection, and colour coding, resistant to abrasion, UV, and common solvents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heatshrink Thin Wall 6.4MM Green 1.2M
Brand: Cabac
SKU: XLP7G/4FT
Alternatively Known As: Thin Wall Heat Shrink Tubing, Green Heatshrink Sleeve, Polyolefin Heat Shrink Tube, Electrical Insulation Tubing
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 6.4mm
- After-shrink diameter: 3.2mm
- Recovered wall thickness: 0.56mm
- Length: 1.2m (4ft)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock: 250°C for 4 hours
- UV stabilized except clear variants
- Dimensions (H x L x W): 6.4mm x 1200mm x 6.4mm
- Weight: 0.02 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact, abrasion, and UV radiation
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Resistant to common fluids and solvents
- UL certified and compliant with ASTM D2671 and UL224 VW1 standards
Professional Installation Requirements
- Professional installation recommended to ensure proper heat application and secure fitting using appropriate heat gun tools.
Applications
- Electrical insulation and protection of conductors
- Colour coding in electrical and associated industries
- Protection against environmental factors such as fluids and solvents
- Mechanical protection in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and long-lasting material reduces need for frequent replacements
- UV resistance extends product life, minimizing waste
- Protects electrical components, reducing risk of failure and electronic waste
Warranty Information
Warranty information not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Cabac Heatshrink Thin Wall 6.4MM Green 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
