Heatshrink Tubing Thin Wall 76mm Flame-Retardant White 1.2m Cabac

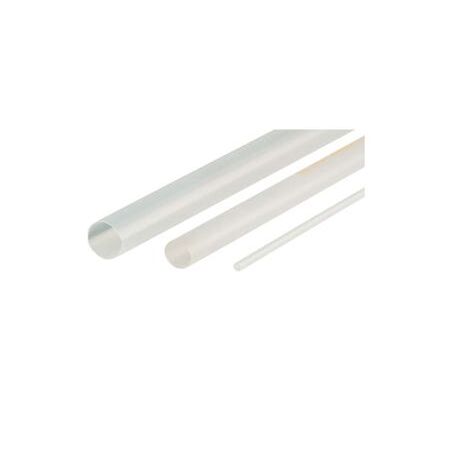

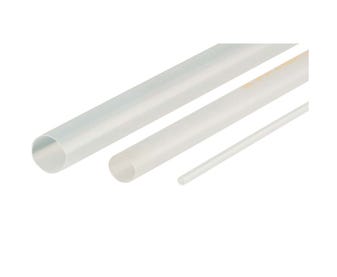

The Cabac Heatshrink Thin Wall 76MM White 1.2M is a flame retardant, flexible heat shrink tubing designed for electrical insulation, protection, and colour coding
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electron Beam Cross Linked Polyolefin
- Pre-shrink diameter: 76.2mm
- After-shrink diameter: 38.1mm
- Recovered wall thickness: 1.2mm
- Length: 1.2 meters (4 feet)
- Continuous Operating Temperature: -75 to +135°C
- Shrinkage Temperature: > 105°C
- Longitudinal Shrinkage: < 5%
- Tensile Strength: 10.4 MPa
- Breakdown Voltage: 25 kV/mm wall thickness
- Elongation at Break Point: 400%
- Water Absorption: 0.15% max
- Voltage Rating: 600V
- Heat Shock Resistance: 250°C for 4 hours
- UL Certified (UL224 VW1 File No. E366157)
- Complies with ASTM D2671
- Dimensions (H x L x W): 12mm x 1200mm x 76mm
- Weight: 0.1 kg
Key Features
- Flame retardant tubing made from Electron Beam Cross Linked Polyolefin
- Flexible and resistant to impact and abrasion
- Resistant to common fluids and solvents
- UV resistant except for clear variants
- Shrinks to approximately 50% of pre-shrink diameter upon heating
- Continuous operating temperature range from -75 to +135 degrees Celsius
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper application and safety compliance.
Applications
- Electrical insulation and protection of conductors
- Colour coding of electrical wiring
- Mechanical protection against impact and abrasion
- Environmental protection against fluids and solvents in electrical and associated industries
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and reusable insulation reduces electrical waste
- UV resistance extends product lifespan, reducing replacement frequency
- Protects electrical components from environmental damage, enhancing energy efficiency
Warranty Information
Warranty information not specified; standard manufacturer warranty applies.
Available Now
The Cabac Heatshrink Thin Wall 76MM White 1.2M is available now for immediate purchase. Ideal for electrical insulation and protection in industrial, commercial, and residential applications.
