Heavy Duty 50A 10m Extension Lead 5Pin 10mm² IP66 Grey Powersafe
This Powersafe heavy duty extension lead suits industrial sites and construction equipment needing high current power distribution. It runs 10 metres with a 50A rating and 10mm² cable size for reliable power delivery. The 56 Series 5 Pin plug and socket combination is IP66 rated and complies with AS/NZS 3123 for industrial plugs and socket-outlets. Full specifications and installation requirements are outlined further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

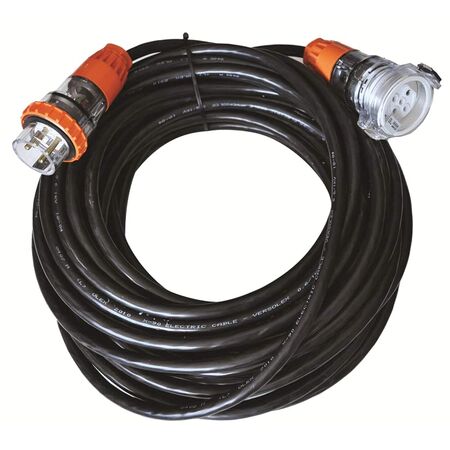

Product Name/Title: 10 Metre 50A 56 Style 5 Pin Plug and Socket | IP66 Rated | Heavy-Duty Flexible Cable | by Powersafe
Brand: Powersafe
SKU: 10mm/10/50/56
Alternatively Known As: 56 Series Extension Lead, 50A 5 Pin Extension Lead, Industrial Power Lead, 56P550 Plug and Socket Lead, Heavy Duty 5 Pin Power Cable
Technical Specifications
- Cable Length: 10 metres
- Current Rating: 50A
- Voltage: 500V AC
- Plug Type: 56 Series 5 Pin
- Socket Type: 56 Series 5 Pin
- Cable Size: 10mm² conductors
- Ingress Protection: IP66 (dust tight and protected against powerful water jets)
- Material: UV stabilised, impact resistant thermoplastic
- Operating Temperature: -25°C to +55°C
- Dimensions (H x L x W): 120mm x 10000mm x 120mm
- Weight: 6.5 kg
Key Features
- 10 metre heavy-duty flexible cable
- 50A current rating for high power applications
- 56 Series 5 pin plug and socket for secure connection
- IP66 rated for superior water and dust protection
- UV stabilised and impact resistant construction
- Suitable for outdoor and harsh environments
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician to ensure compliance with Australian standards and site safety requirements.
Applications
- Industrial sites requiring high current power distribution
- Construction sites for heavy-duty equipment
- Temporary power supply for events and outdoor venues
- Mining and resource sector applications
- Workshops and factories needing robust power connections
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable, long-life construction reduces replacement frequency and waste
- IP66 rating prevents ingress of water and dust, reducing risk of environmental contamination
- UV stabilised materials extend outdoor usability, minimising environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Powersafe 10 metre 50A 56 style 5 pin plug and socket IP66 is available for immediate purchase. Ideal for industrial, construction, and outdoor applications requiring reliable high-current power connections.
FAQ
Q: What is the cable length and current rating of this extension lead?
A: This Powersafe extension lead runs 10 metres with a 50A current rating and 500V AC voltage.
Q: Is this extension lead suitable for outdoor or construction site use?
A: Yes, it carries an IP66 rating for dust and water protection and is backed by SCHNAP's 30-day return policy.
For lighter duty runs, a 32A extension lead offers a similar 5 pin configuration at a lower current rating.
Sites needing an even higher current supply typically move up to a 63A extension lead for three-phase equipment.Crews working across multiple bays sometimes prefer abraided 15A extension lead for lighter equipment runs.
Contractors working with 3-phase equipment can check the 3 phase extension lead guide for wiring and setup advice.
