Heavy Duty 63A 15m Extension Lead 5Pin CEE 16mm² IP67 Grey Powersafe

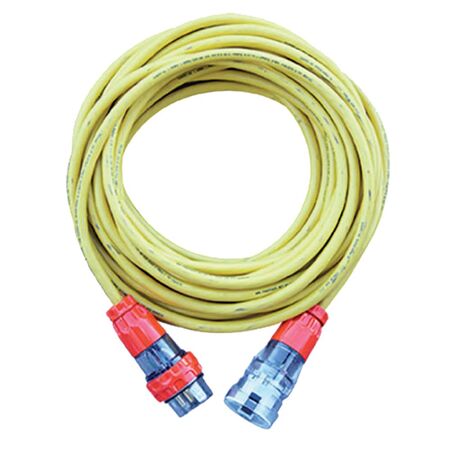

This Powersafe heavy duty extension lead suits industrial and commercial power distribution across construction sites and mining environments. It runs 15 metres with a 63A rating and 16mm² conductors through a 5 Pin CEE Form plug and socket. The IP67 rating protects against dust and water immersion, complying with AS/NZS 3123 for industrial plugs and socket-outlets. Full specifications and installation requirements are covered further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 15 Metre 63A 5 Pin CEE Form Plug and Socket | IP67 Rated | Heavy-Duty Flexible Cable | by Powersafe
Brand: Powersafe
SKU: 16mm/15/63/CEE
Alternatively Known As: 63A 5 pin extension lead, 63A CEE Form cable, 5 pin IP67 power lead, industrial power extension, IEC 60309 63A extension
Technical Specifications
- Cable Length: 15 metres
- Current Rating: 63A
- Voltage: 415V AC
- Pins: 5 (3P+N+E)
- Plug & Socket Type: CEE Form (IEC 60309)
- Cable Size: 16mm² conductors
- Ingress Protection: IP67 (dust tight and protected against immersion)
- Operating Temperature: -25°C to +40°C
- Cable Type: Heavy-duty flexible rubber
- Dimensions (H x L x W): 120mm x 15000mm x 120mm
- Weight: 12 kg
Key Features
- 15 metre heavy-duty flexible cable
- 63A current rating for high power applications
- 5 pin CEE Form (IEC 60309) plug and socket
- IP67 rated for complete protection against dust and water immersion
- Robust construction for demanding environments
- Suitable for both indoor and outdoor use
Professional Installation Requirements
- Installation and connection should be performed by a licensed electrician to ensure compliance with safety standards and optimal performance.
Applications
- Industrial and commercial power distribution
- Construction sites
- Temporary event power supply
- Heavy-duty outdoor and indoor electrical connections
- Mining and marine environments
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and reusable, reducing the need for frequent replacements
- IP67 rating ensures longevity and minimizes environmental contamination from electrical faults
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Powersafe 15 metre 63A 5 pin CEE Form plug and socket IP67 extension lead is available for immediate purchase. Ideal for industrial, construction, and event power distribution applications.
FAQ
Q: What is the current rating and cable length of this extension lead?
A: This Powersafe extension lead runs 15 metres with a 63A current rating at 415V AC, using a 5 Pin CEE Form plug and socket.
Q: Is this extension lead suitable for indoor and outdoor use?
A: Yes, it carries an IP67 rating for protection against dust and water immersion, suitable for both indoor and outdoor electrical connections, and is backed by SCHNAP's 30-day return policy.
For lower current three-phase applications, a 32A extension lead offers a lighter alternative.
Sites needing higher current for heavy machinery often move up to a 50A extension lead.
Lighter duty circuits on the same site can be run off a braided 15A extension lead instead.
Crews unfamiliar with three-phase power setups can consult the 3 phase extension lead guide before installation.
