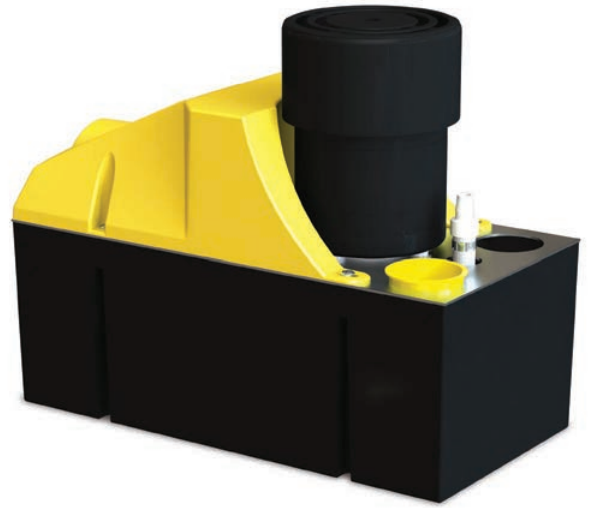

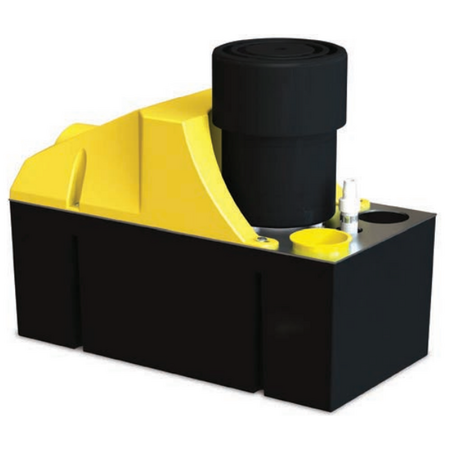

Heavy Duty Condensate Pump | 1070L/h Flow Rate | 4L Tank Capacity | IP20 Rated | by Aspen Pumps
The Heavy Duty Condensate Pump is designed for efficient condensate removal, featuring a high flow rate of 1070L/h and a 4L tank capacity. Ideal for dehumidifiers and air handling units, this pump ensures continuous operation while maintaining HVAC system efficiency. With an IP20 protection rating and a non-return valve to prevent backflow, it's perfect for both commercial and residential applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heavy Duty Condensate Pump | 1070L/h Flow Rate | 4L Tank Capacity | IP20 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2066
Alternatively Known As: Heavy Duty Condensate Pump, HD10 Condensate Pump, Aspen HD10 Pump
Technical Specifications
- Max flow rate: 1070L/h
- Max recommended head: 10m
- Tank capacity: 4L
- Noise level: 64 dB(A) at 1m
- Power supply: 230 VAC, 0.38A, 50Hz
- Operation: Continuous
- Max water temperature: 40°C / 104°F
- Inlet/Outlet sizes: 40mm inlet, 10mm outlet
- IP Protection: IP20
- Safety switch: 3.0A normally closed
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 3.5 kg
Key Features
- High flow rate of 1070L/h
- Non-return valve to prevent backflow
- Easy installation
- 4 litre tank capacity
- Continuous operation
- IP20 protection rating
- Safety switch 3.0A normally closed
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper electrical and plumbing connections and compliance with safety standards.
Applications
- Dehumidifiers
- Air Handling Units (AHUs)
- Rapid removal of large quantities of condensate water
Standards & Compliance
- AS/NZS 60335 – Safety of household and similar electrical appliances
Environmental Benefits
- Efficient condensate removal helps maintain HVAC system efficiency, reducing energy consumption.
- Durable design reduces waste and replacement frequency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Heavy Duty 10 Condensate Removal Pump is available now for immediate purchase. Ideal for commercial and residential HVAC systems requiring efficient condensate management.
