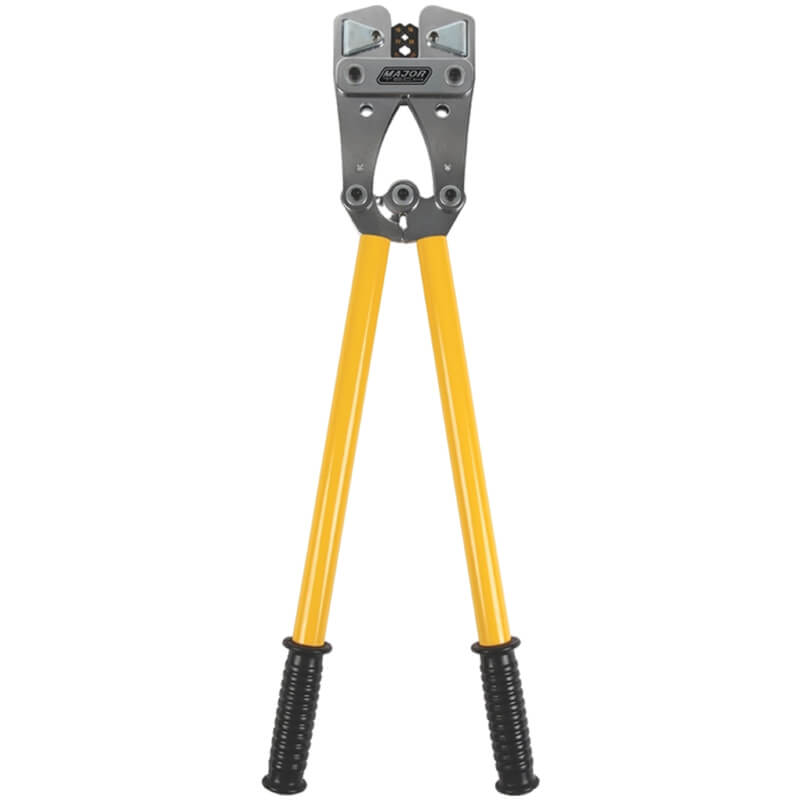

Hex Crimping Tool 6-120mm MajorTech

BRAND: Major Tech
SKU: CTR03120
$252.70 List price: $336.90
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech hex crimping tool features 6-120mm capacity and hexagonal dies for secure crimps. Ideal for terminating cable lugs and connectors.

Alternatively Known As: MajorTech CTR03120 Hex Crimper, Non-Insulated Terminal Crimping Tool, Copper Cable Lug Crimper

Technical Specifications
  • Terminal Capacity: 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm² and 120mm²
  • Application: Non-insulated copper tube terminals and cable lugs
  • Crimp Profile: Hexagonal
  • Die Selection: Rotating die sets integrated into the tool head
  • Mechanism: Full ratchet with pressure adjustment and manual override
  • Jaws: Professional-quality drop-forged jaws
  • Operation: Suitable for left- or right-hand use
  • Handle Length: 470mm
  • Dimensions (H x L x W): 55mm x 650mm x 160mm
  • Weight: 0.435 kg
Key Features
  • Covers a broad 6–120mm² terminal range
  • Rotating die sets allow quick selection of the required crimp size
  • Hexagonal crimps provide secure compression of compatible cable lugs and connectors
  • Full ratchet mechanism assists consistent crimping pressure
  • Automatic release with manual override
  • Drop-forged jaws for repeated trade use
  • Suitable for terminating non-insulated copper cable terminals
Applications
  • Electrical cable lug termination
  • Battery and power cable assembly
  • Switchboard and distribution equipment wiring
  • Industrial and commercial electrical maintenance
  • Installation of non-insulated copper tube terminals
Standards & Compliance
  • AS/NZS 3000:2018 application reference: crimped electrical connections must be securely retained and made using a tool designed for the purpose; the manufacturer does not state separate certification for this hand tool.
Environmental Benefits
  • Manual operation requires no batteries or mains power during use
  • Reusable mechanical construction supports repeated servicing and reduces disposable tool waste
  • Durable drop-forged components may extend service life and reduce replacement frequency
Warranty Information

Major Tech tools carry a 2-year warranty against eligible defects, subject to the manufacturer's warranty terms, proof of purchase and exclusions for misuse, abuse, normal wear and inadequate maintenance.

Available Now

Available through MajorTech and authorised Australian electrical and trade-equipment distributors.
