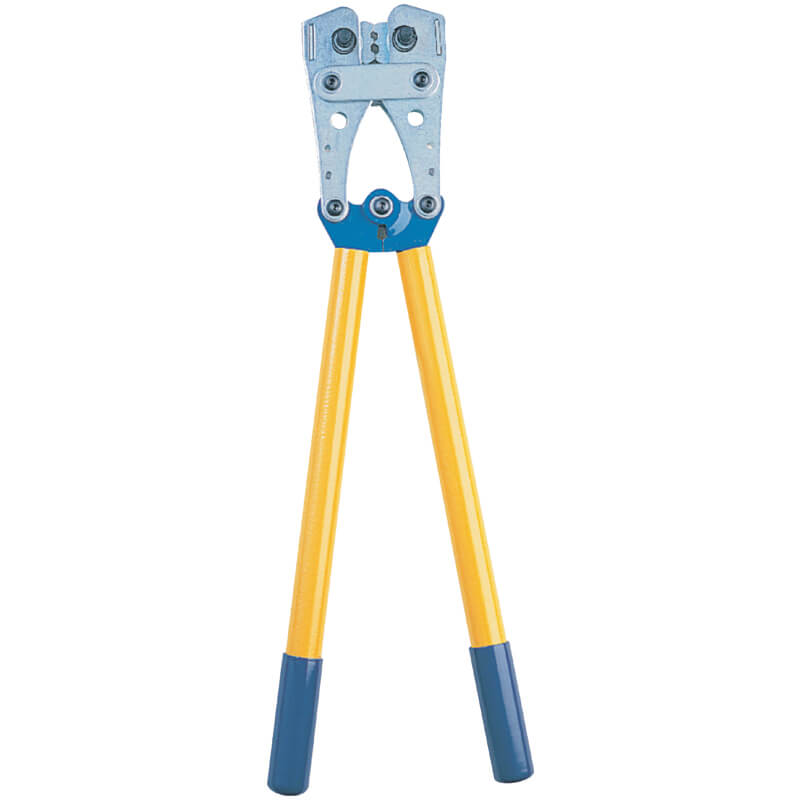

Hex Crimping Tool 6-50mm MajorTech
MajorTech hex crimping tool features 6-50mm capacity and hexagonal dies for secure crimps. Ideal for terminating cable lugs and connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Major Tech CTR03650 Hex Crimper, Hex Cable Lug Crimper, Copper Tube Cable Crimping Tool
Technical Specifications
- Crimping Range: 6 mm², 10 mm², 16 mm², 25 mm², 35 mm² and 50 mm²
- Crimp Type: Hexagonal crimp
- Application: Non-insulated copper tube cable terminals and lugs
- Overall Length: 385 mm
- Handle Length: 255 mm
- Die Selection: Rotating die sets within the tool head
- Construction: Drop-forged crimping jaws
- Operation: Manual hand operation
- SKU: CTR03650
- Dimensions (H x L x W): 50mm x 385mm x 110mm
- Weight: 1.2 kg
Key Features
- Hexagonal crimp profile for compatible copper cable lugs
- Rotating die sets allow quick selection of crimp sizes
- Suitable for 6–50 mm² terminals
- Designed for terminating copper tube cables
- Drop-forged tool construction
- Compact manual design for electrical installation and maintenance work
Professional Installation Requirements
- Use should be carried out by suitably qualified electrical personnel. Select the correct die and lug size for the conductor, and verify the completed termination in accordance with the cable and connector manufacturer’s instructions and applicable electrical installation requirements.
Applications
- Terminating copper cable lugs
- Crimping non-insulated copper tube terminals
- Electrical switchboard and distribution-board wiring
- Battery, inverter and renewable-energy cable preparation
- Industrial electrical maintenance and cable assembly
Standards & Compliance
- For use with compatible compression lugs and connectors manufactured to AS/NZS 4325.1; Major Tech does not publish a separate Australian Standards compliance claim for the hand tool itself.
Environmental Benefits
- Reusable hand tool avoids single-use termination equipment
- Durable drop-forged construction can support extended service life and reduce replacement waste
- Manual operation requires no batteries, mains electricity or hydraulic fluid
Warranty Information
Major Tech Australia lists tools under a 2-year extended product warranty, subject to the manufacturer’s warranty conditions, proof of purchase and exclusions for misuse, abuse, normal wear and unauthorised alterations.
Available Now
Available through Major Tech and authorised Australian electrical distributors.
