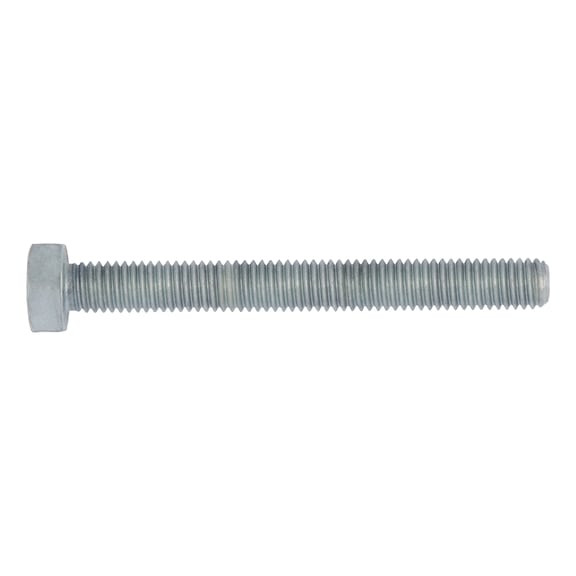

Hex Head Screw DIN 933 | M10 Thread | Hot-Dip Galvanised | 8.8U Steel | @Pack of 25 | by Wurth
Hex Head Screw DIN 933 with M10 thread and hot-dip galvanised finish is perfect for mechanical assembly and construction applications. Made from high-strength 8.8U steel, these screws offer excellent corrosion resistance and durability, making them ideal for industrial and automotive use. Ensure secure fastening with this reliable fastener, designed for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Screw DIN 933 | M10 Thread | Hot-Dip Galvanised | 8.8U Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5971040
Alternatively Known As: Hex bolt M10, Hex cap screw M10, Hot-dip galvanized hex screw, Metric hex head bolt
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 40 mm
- Head height: 6.4 mm
- External drive: WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Thread length: 40 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 40mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compliant after hot-dip galvanisation.
- Full metric thread design with hexagon head and outer hexagon drive.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring strong, corrosion-resistant fasteners
- Construction and structural applications
- General purpose fastening in industrial and automotive sectors
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanisation provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
