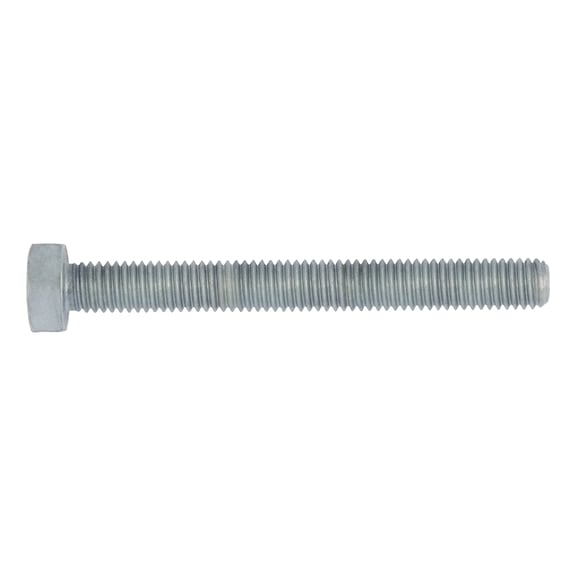

Hex Head Screw DIN 933 M10 x 55mm Steel 8.8U Wurth
Hex Head Screw DIN 933 M10 x 55mm is designed for robust mechanical assembly, featuring a high-strength steel 8.8U construction and hot-dip galvanised surface for
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 55 mm
- Head height: 6.4 mm
- External drive: WS17 (17mm wrench size)
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 55mm x 17mm
- Weight: 0.05 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684)
- ISO-compliant after hot-dip galvanisation
- Full metric thread design with outer hexagon drive
- Hot dip galvanized surface for corrosion resistance
- Steel material with property class 8.8U for high strength
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assembly requiring strong, corrosion-resistant fasteners
- Construction and structural applications
- General purpose fastening in automotive and industrial equipment
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot-dip galvanisation provides long-lasting corrosion protection reducing the need for frequent replacements
- Durable steel construction supports sustainable use in industrial and construction applications
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hex Head Screw M10 x 55mm Steel 8.8U Hot-Dip Galvanised is available for immediate purchase, ideal for construction, mechanical, and industrial fastening applications.
