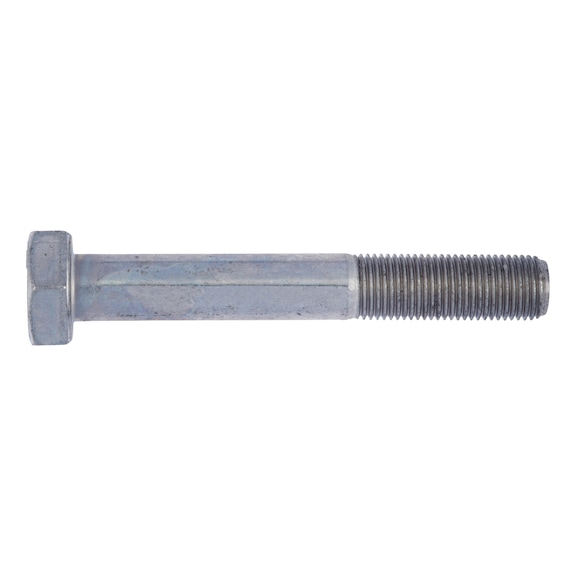

Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Hexagon Bolt DIN 960 with strength class 10.9 and zinc-nickel plating is perfect for high-strength mechanical assemblies. Designed for automotive and industrial applications, this bolt offers exceptional corrosion resistance of 720 hours, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26341030
Alternatively Known As: Hex bolt M10 fine thread, DIN 960 bolt, Zinc nickel hex bolt, High strength hex bolt

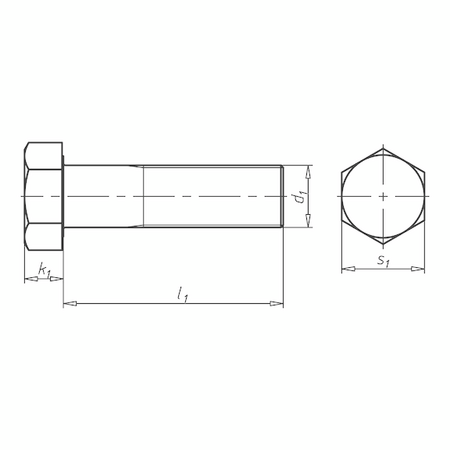

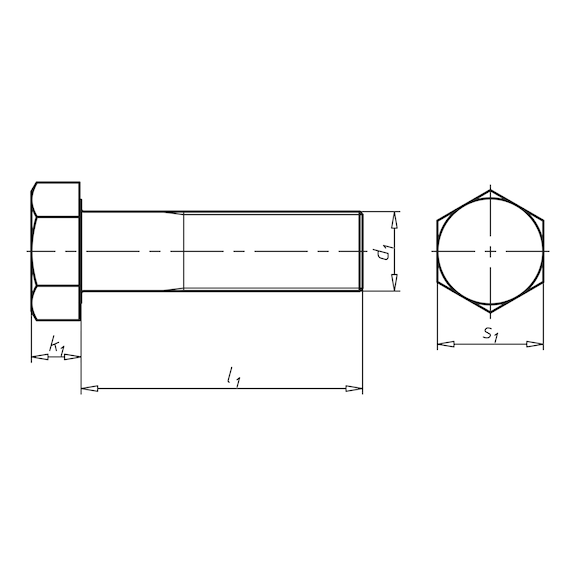

Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Length: 30 mm
- Head height: 6.4 mm
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel plating with transparent passivation
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon (WS17)
- Thread type: Metric fine pitch thread
- Thread length: 20 mm
- Shank diameter: 10 mm
- Thread design: Partial thread
- RoHS-compliant: Yes
- Product class: A
- Dimensions (H x L x W): 6.4mm x 30mm x 17mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion according to DIN EN ISO 9227-NSS
- Fine pitch metric thread with partial thread design
- Hexagon head with outer hexagon drive (WS17)
- Zinc-nickel plated with transparent passivation (P3E) for enhanced corrosion protection

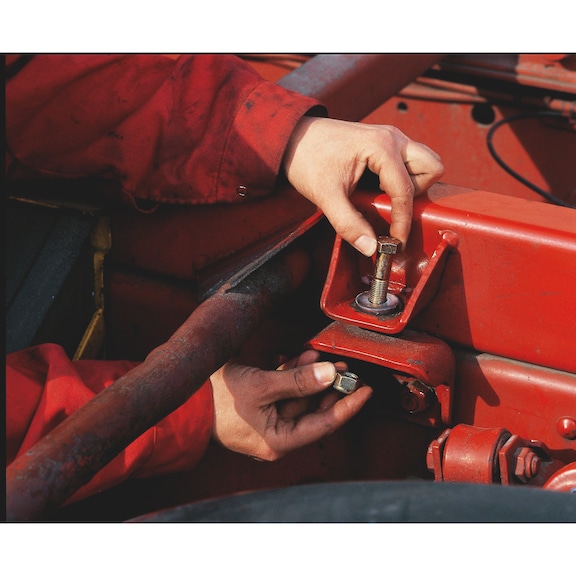

Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery manufacturing
- Industrial equipment and structural applications
Standards & Compliance
- Complies with AS/NZS 4762 for high strength steel bolts (equivalent to ISO 8765 replacing DIN 960)
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
