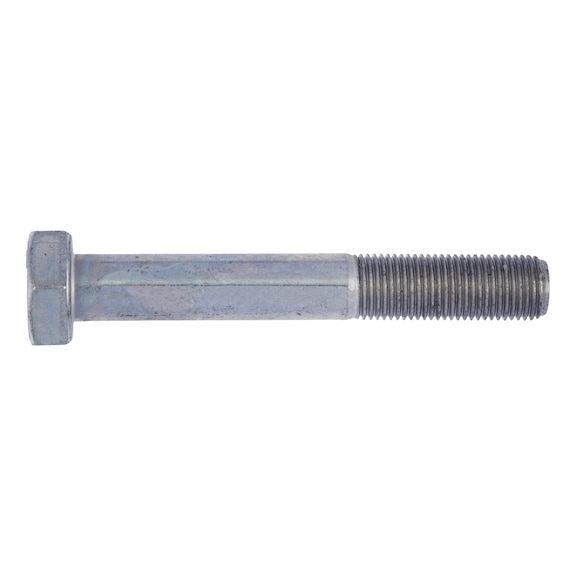

Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Hexagon Bolt DIN 960 with strength class 10.9 and zinc-nickel plating is perfect for mechanical assemblies requiring high strength fasteners. Designed for automotive and industrial applications, this bolt offers exceptional corrosion resistance and durability, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26341035
Alternatively Known As: Hex bolt M10 fine thread, DIN 960 bolt, Zinc-nickel plated hex bolt, High strength hex bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Length: 35 mm
- Head height: 6.4 mm
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel plating with transparent passivation (P3E)
- Corrosion protection period: 720 hours base metal corrosion per DIN EN ISO 9227-NSS
- Head type: Hexagon head
- Drive type: Outer hexagon (WS17)
- Thread type: Metric fine pitch thread
- Thread design: Partial thread
- Shank diameter: 10 mm
- Thread length: 22 mm
- RoHS-compliant: Yes
- Product class: A
- Dimensions (H x L x W): 6.4mm x 35mm x 17mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free, compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion according to DIN EN ISO 9227-NSS
- Zinc-nickel-plated with transparent passivation (P3E)
- Fine pitch metric thread with partial thread design
- Hexagon head with outer hexagon drive (WS17)
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery manufacturing
- Industrial equipment and structural applications
Standards & Compliance
- Complies with AS/NZS 4762 for high strength steel fasteners
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth Hexagon Bolt with shank and fine thread DIN 960 is available for immediate purchase, ideal for industrial, automotive, and mechanical applications requiring high strength fasteners.
