Hexagon Bolt ISO 4017 | M5x30 | Steel 8.8 | Zinc Nickel Plated Black | @Pack of 25 | by Wurth

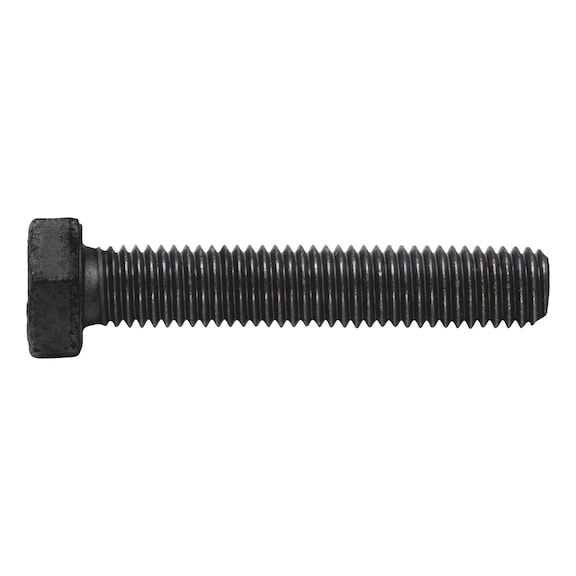

Hexagon Bolt ISO 4017 M5x30 is crafted from high-strength steel 8.8, featuring a zinc nickel black coating for superior corrosion resistance. Ideal for mechanical assemblies and automotive applications, this bolt ensures reliable fastening in corrosive environments, with a corrosion protection period of up to 480 hours. Perfect for professionals seeking durable and compliant fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt ISO 4017 | M5x30 | Steel 8.8 | Zinc Nickel Plated Black | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 41476530
Alternatively Known As: Hex bolt M5x30, Zinc nickel plated hex bolt, ISO 4017 hex bolt, Black coated hex bolt, Metric hex bolt 8.8
Technical Specifications
- Thread type x nominal diameter: M5
- Length: 30 mm
- Head height: 3.5 mm
- External drive: WS8 (8 mm hex socket)
- Standards: ISO 4017
- Material: Steel
- Property class: 8.8
- Surface finish: Zinc nickel black coating
- Corrosion protection period: 480 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 30mm x 8mm
- Weight: 0.05 kg
Key Features
- Hexagon head with full metric thread up to the head
- Steel material with property class 8.8 for high strength
- Zinc-nickel black coating providing chromium (VI)-free corrosion protection
- Corrosion resistance up to 480 hours in salt spray testing (DIN EN ISO 9227 NSS)
- Adjusted friction coefficient range of 0.09 μ–0.14 μ due to integrated lubricating particles in top coat
- Thermal capacity up to 120°C
- RoHS-compliant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Automotive and machinery applications exposed to corrosive environments
- General industrial fastening with high strength requirements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chromium (VI)-free coating reduces environmental and health hazards
- Long-lasting corrosion resistance extends product life and reduces replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
